Hytera PD605 UHF DMR (200)

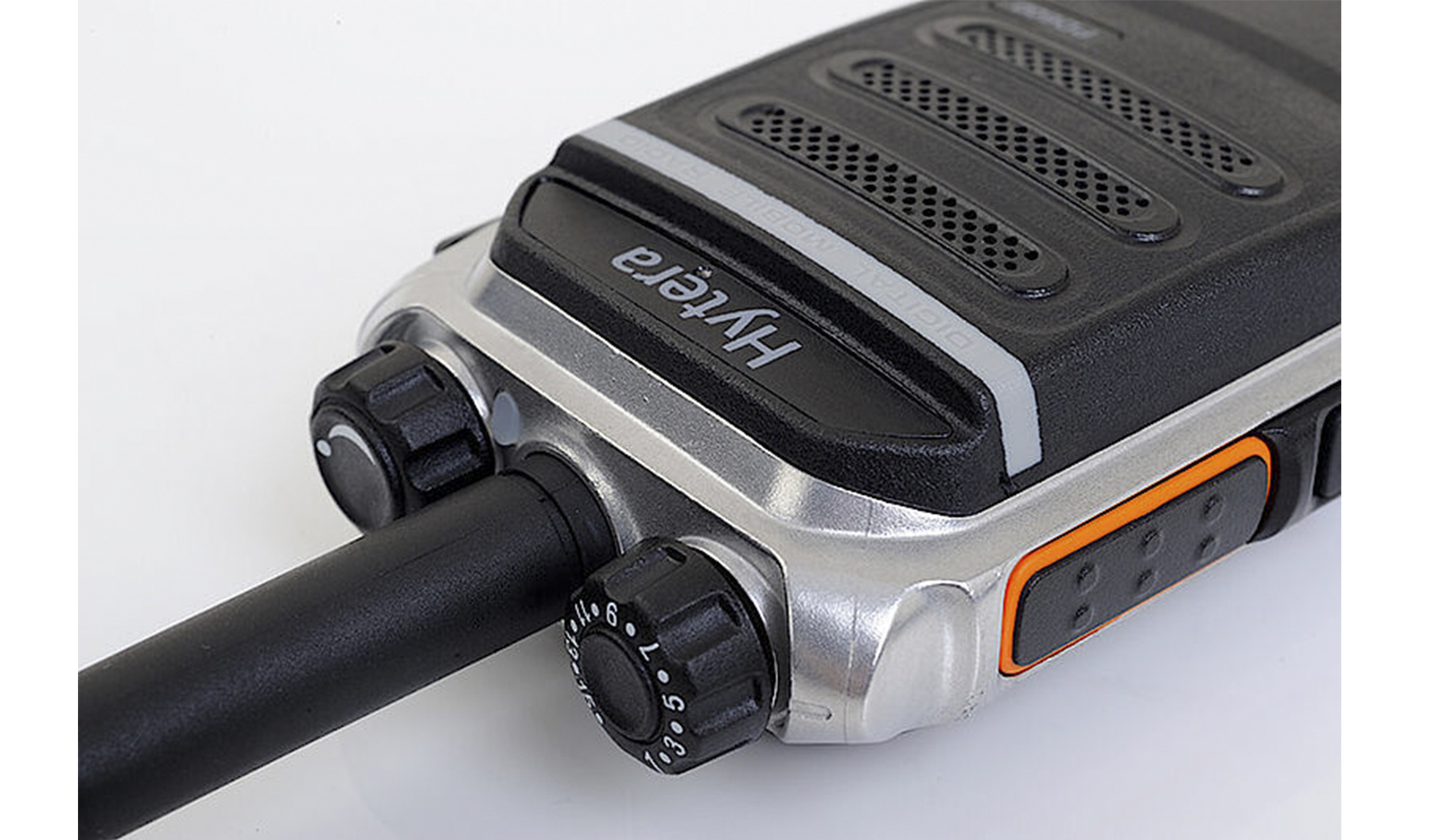

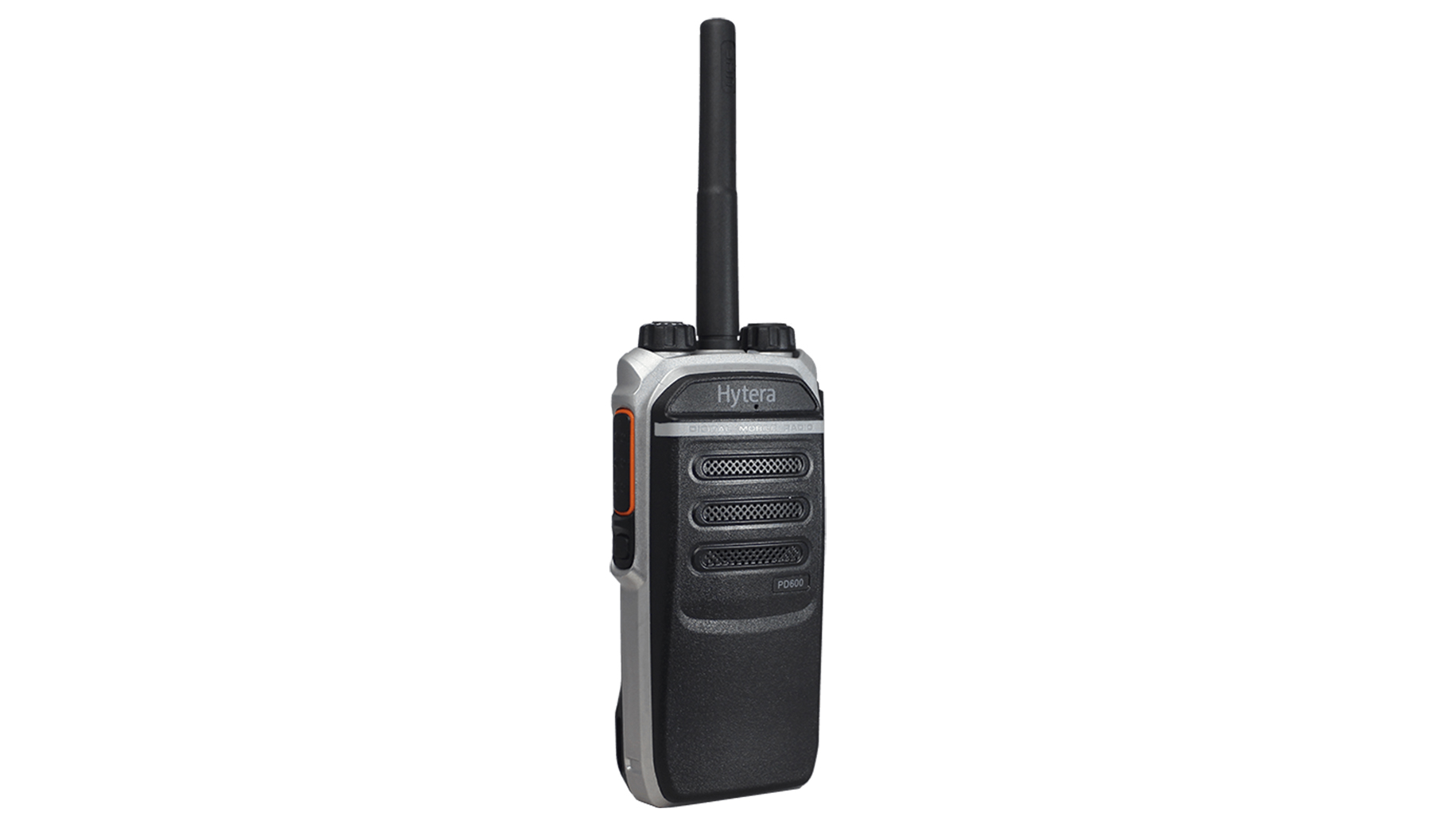

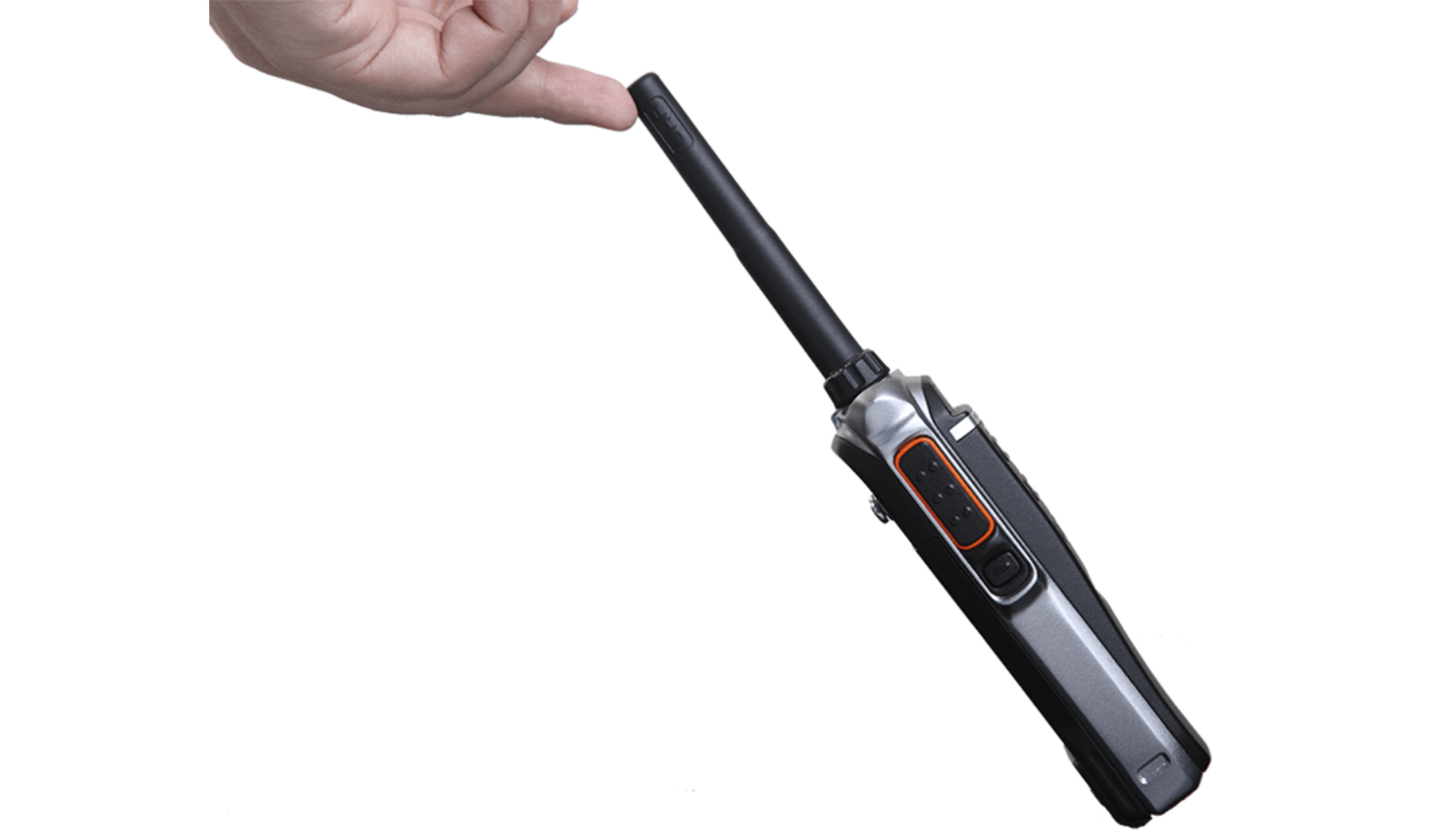

Hytera PD605 - DMR handheld radio

Frequency range
VHF: 136 – 174 MHz
UHF: 400 – 470 MHz | 400 – 527 MHz

Supported operating modes
DMR Tier II (ETSI TS 102 361-1/2/3)
Simulcast
XPT Digital Trunking
DMR Tier III (ETSI TS 102 361-1/2/3/4)
Analog
Number of channels
32

Number of zones
3

Channel spacing
12.5/20/25 kHz (analog)
12.5 kHz (digital)

Operating voltage
7.4 V(nominal)

Standard battery
1500 mAh (lithium-ion battery)

Battery service life (5/5/90 duty cycle, high transmitting power, standard battery))
approx. 11 hours (analog)
approx. 16 hours (digital) at 1500 mAh
approx. 20 hours (digital) at 2000 mAh

Frequency stability
±0.5 ppm

Antenna impedance
50 Ω

Dimensions (H x B X T, without antenna)
119 x 54 x 27 mm

Weight (with antenna and standard battery)
ca. 290 g

Programmable keys
1

Transmitter

Transmitting power
VHF: 1 / 5 W
UHF: 1 / 4 W

Modulation
11 K0F3E at 12.5 kHz
14 K0F3E at 20 kHz
16 K0F3E at 25 kHz

4FSK digital modulation
12.5 kHz (data only): 7K60FXD
12.5 kHz (data and voice): 7K60FXW

Interfering signals and harmonics
-36 dBm (< 1 GHz)
-30 dBm (> 1 GHz)

Modulation limiting
±2.5 kHz at 12.5 kHz
±4.0 kHz at 20 kHz
±5.0 kHz at 25 kHz

Noise cancellation
40 dB at 12.5 kHz
43 dB at 20 kHz
45 dB at 25 kHz

Adjacent channel selectivity
60 dB at 12.5 kHz
70 dB at 20/25 kHz

Audio response
+1 dB to -3 dB

Nominal audio distortion
≤ 3 %

Digital vocoder type
AMBE +2™

Receiver

Sensitivity (analog)
0.22 μV (12 dB SINAD)
0.22 μV (typical) (12 dB SINAD)
0.4 μV (20 dB SINAD)

Sensitivity (digital)
0.22 μV / BER 5%

Adjacent channel selectivity
TIA-603: 60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz
ETSI: 60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz

Intermodulation
TIA-603: 70 dB at 12.5/20/25 kHz
ETSI: 70 dB at 12.5/20/25 kHz

Spurious response rejection
TIA-603: 70 dB at 12.5/20/25 kHz
ETSI: 70 dB at 12.5/20/25 kHz

Signal-noise ratio (S/N)
40 dB at 12.5 kHz
43 dB at 20 kHz
45 dB at 25 kHz

Nominal audio power output
0.5 W

Nominal audio distortion
≤ 3 %

Audio response
+1 dB to -3 dB

Conducted spurious emission
< -57 dBm

Environmental conditions

Operating temperature range
-30 °C to +60 °C

Storage temperature range
-40 °C to +85 °C

ESD
IEC 61000-4-2 (level 4)
±8 kV (contact) ±15 kV (air)

Protection against dust and moisture
IP67

Shock and vibration resistance
MIL-STD-810 C/D/E/F/G

Relative humidity
MIL-STD-810 C/D/E/F/G

GPS (PD605G only)

Time to first fix (TTFF)
< 1 Minute (cold start)
< 10 seconds (warm start)

Horizontal accuracy
< 10 meter
