Hytera HP505 UHF DMR (150)

ΤΟ ΠΡΟΪΟΝ ΔΙΑΤΙΘΕΤΑΙ ΠΡΟΣ

Ενοικίαση

Πώληση

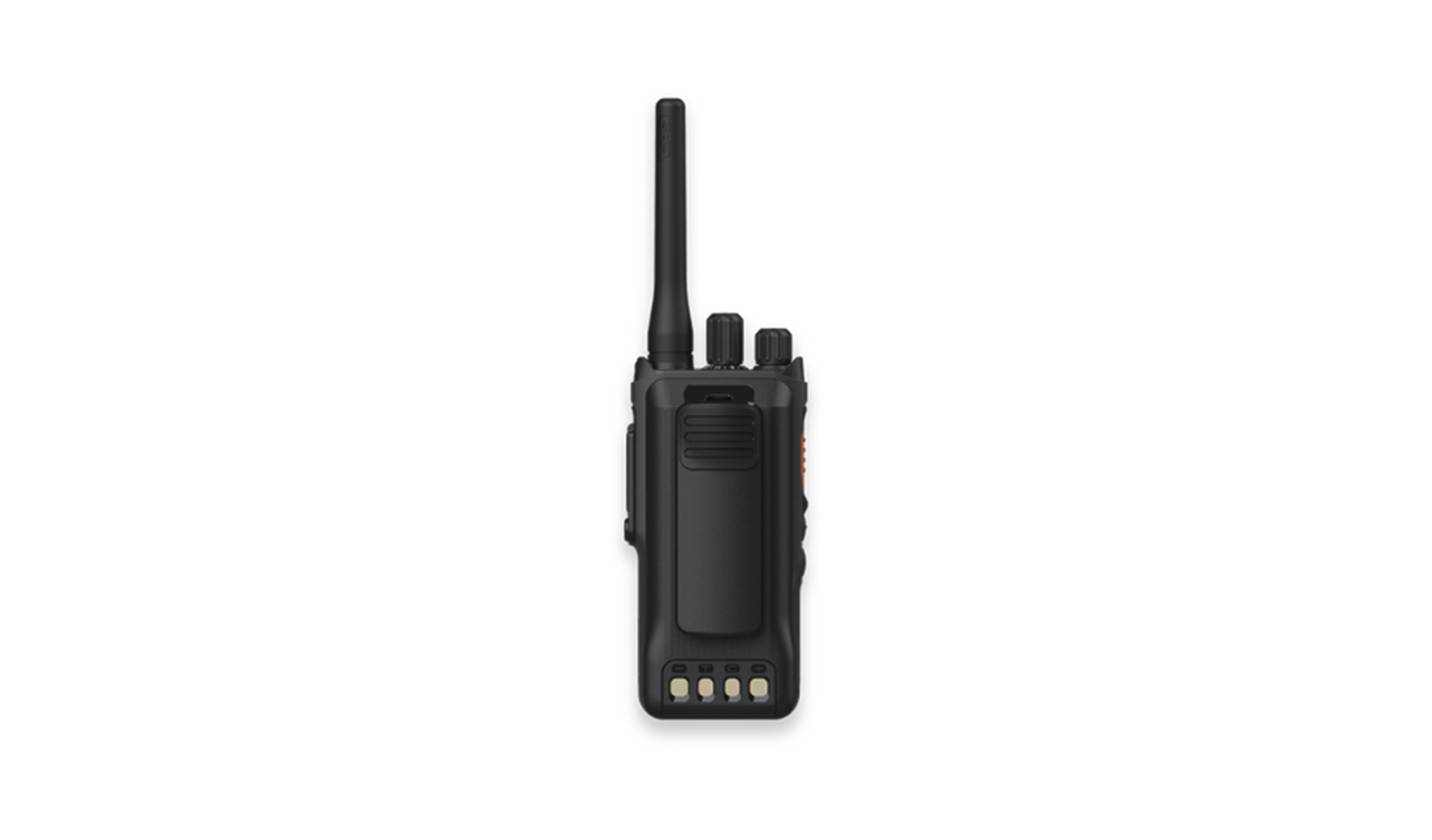

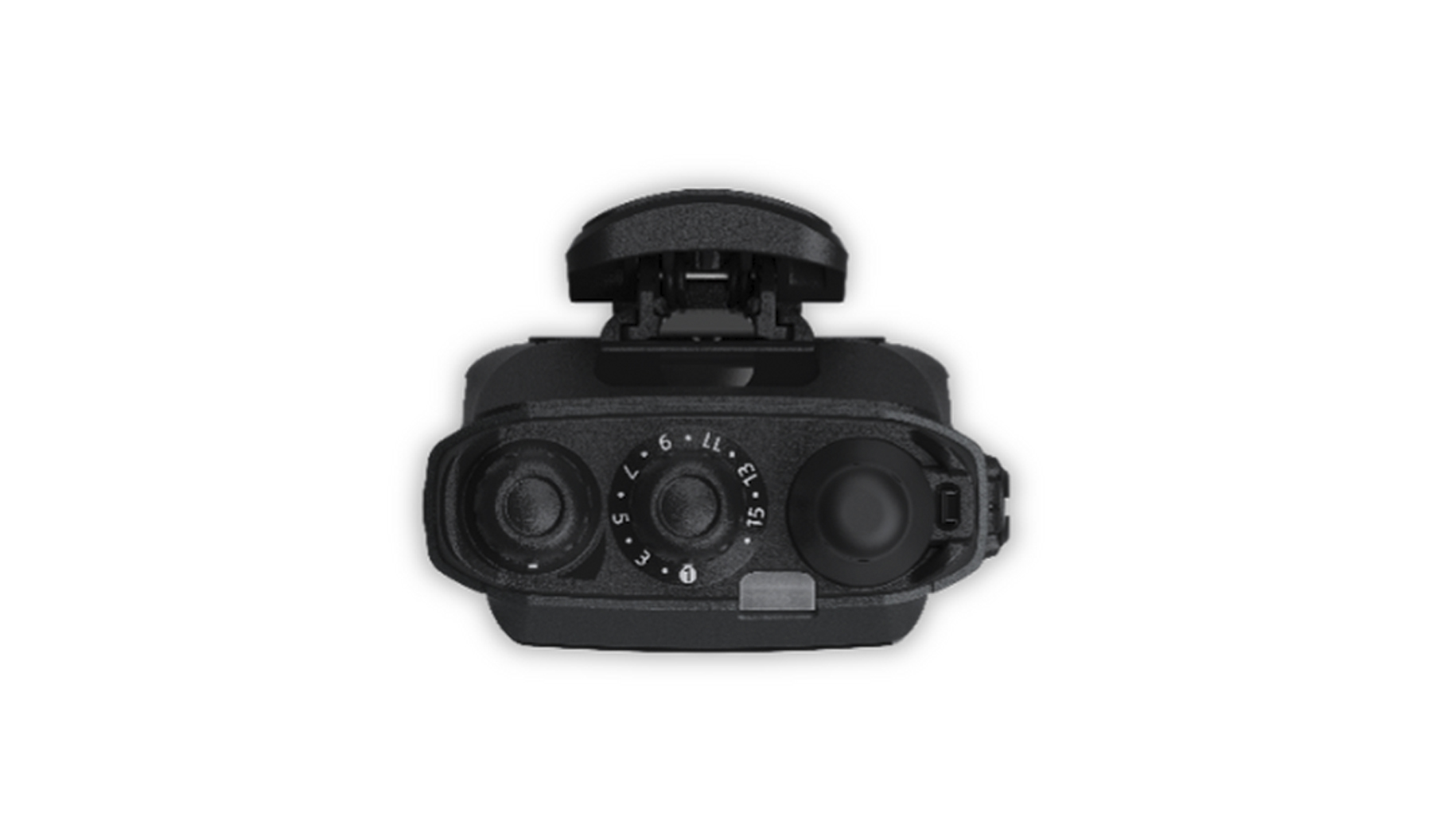

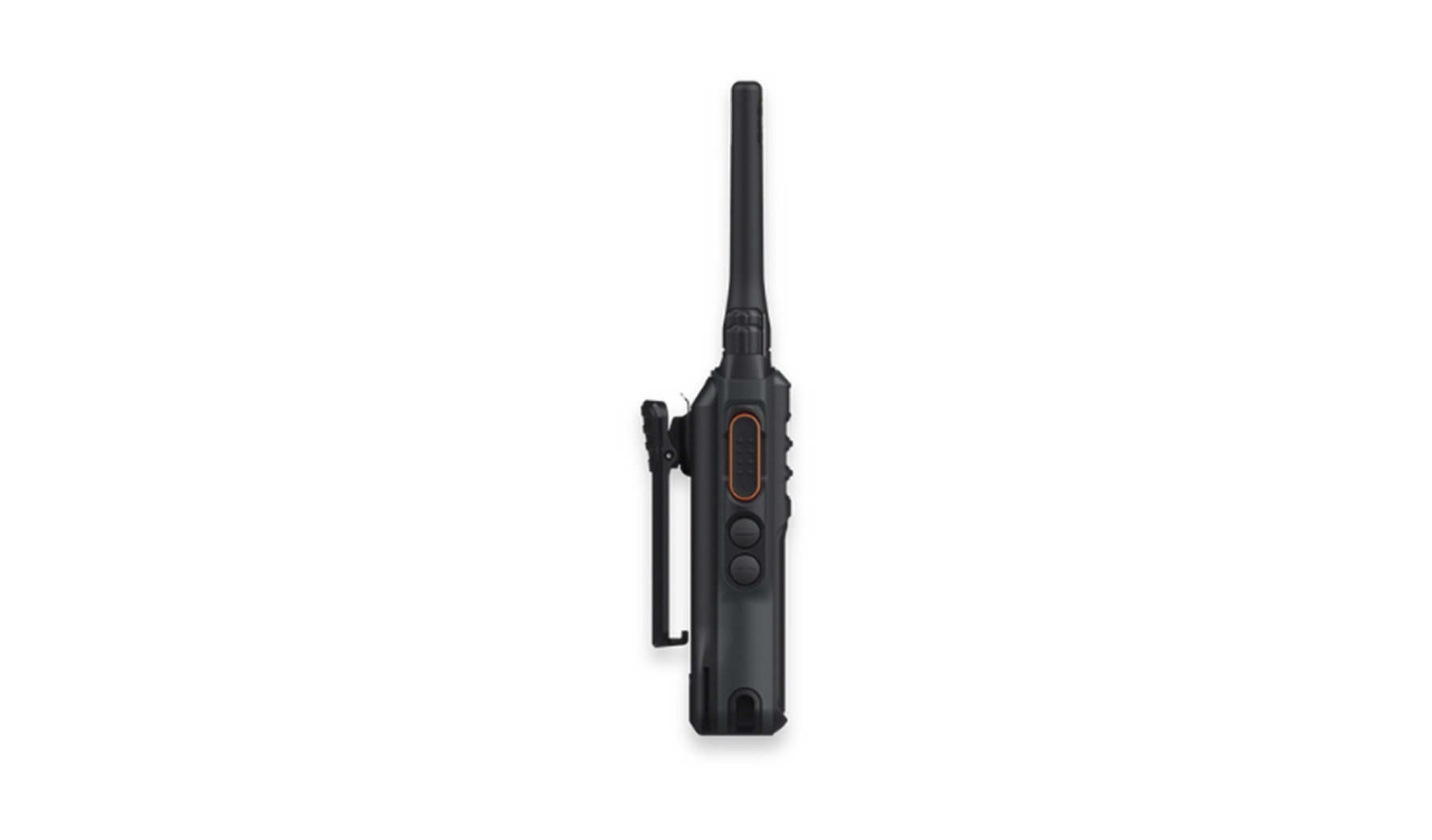

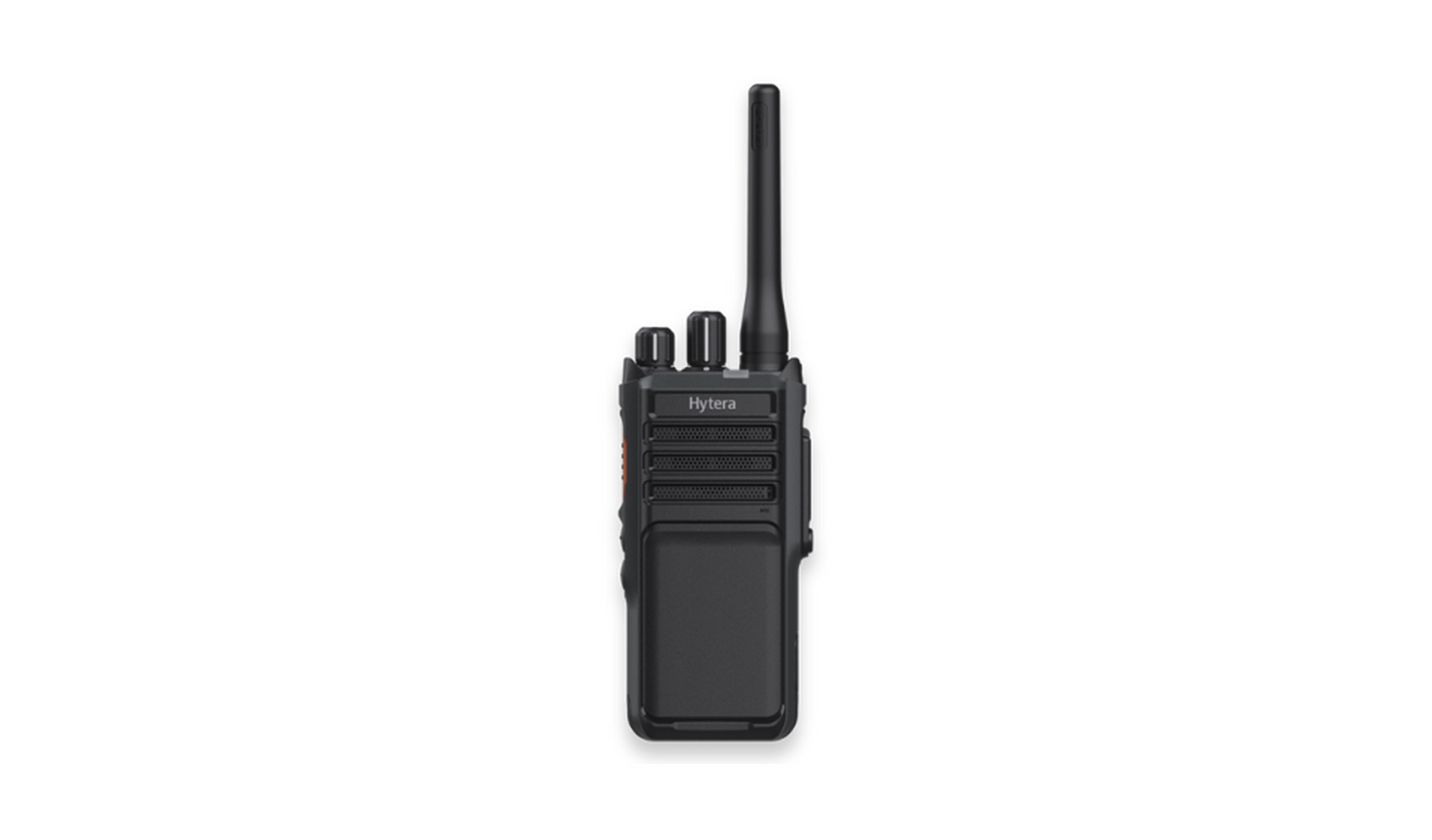

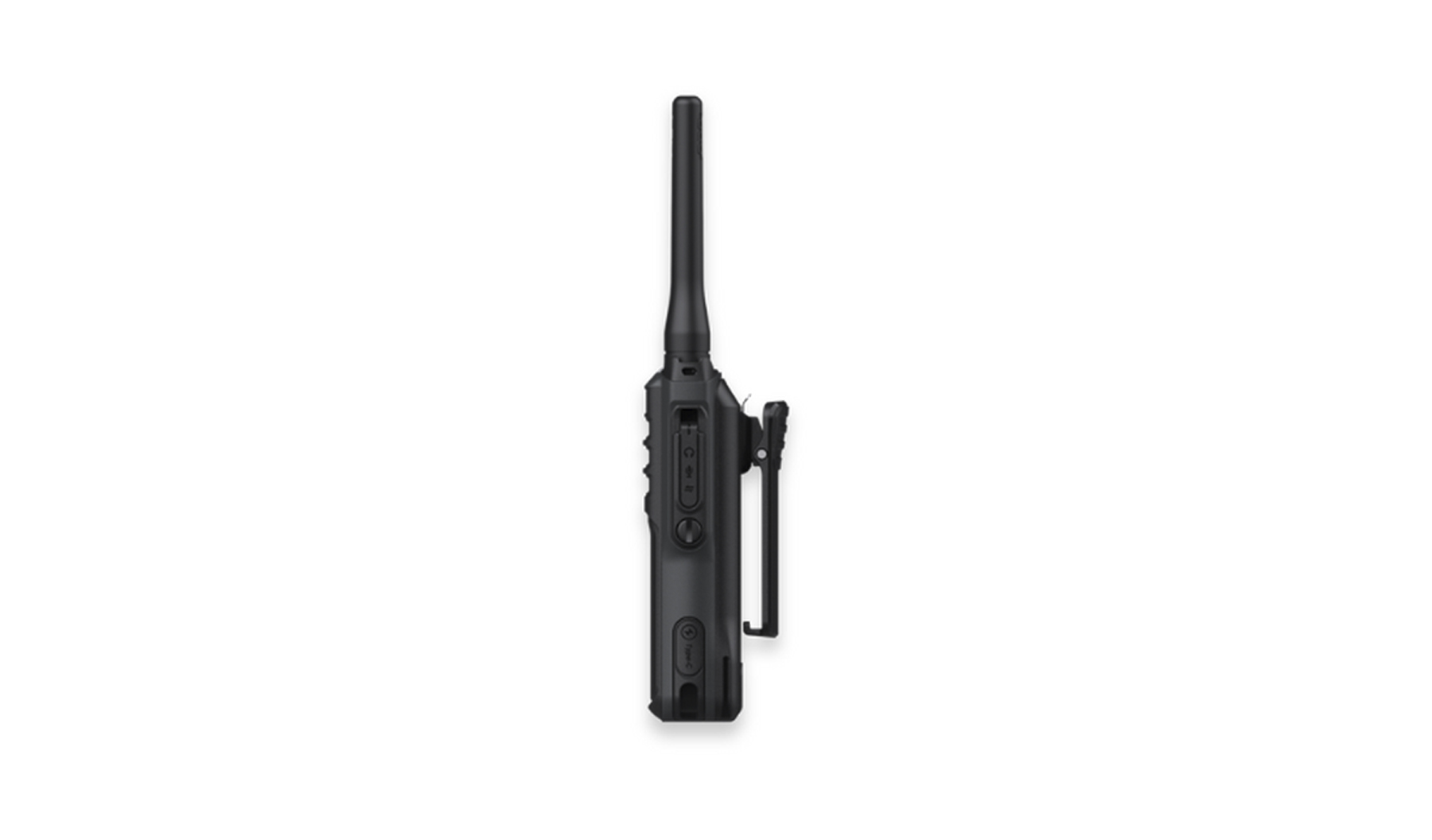

Hytera HP505 Professional DMR and Analogue Radio

YOUTUBE VIDEO

Dimensions
119 mm x 55 mm x 30.5 mm
Weight
265 g
General
Frequency range
UHF: 400-470 MHz
VHF: 136-174 MHz
Channels & zones
Channel capacity: 256
Zone capacity: 16
Channels per zone: 16
Channel spacing
Analogue: 12.5kHz/20kHz/25kHz
Digital: 12.5kHz
Operating voltage
7.4 V
Battery
1500 mAh Li-ion
Battery life (5-5-90 duty cycle)
GNSS disabled: 15 hours
GNSS enabled: 13 hours
Frequency stability
±0.5 ppm
Antenna impedance
50 Ω
Bluetooth (optional)
BT V5.2 BLE+EDR
Receiver
Sensitivity
Analogue: 0.18µV (12dB SINAD)
Analogue: 0.16µV (12dB SINAD) (typical)
Digital: 0.18µV / BER 5%
Selectivity
TIA-603: 60dB @12.5kHz / 70dB @20/25kHz
ETSI: 60 dB @12.5kHz / 70dB @20/25kHz
Intermodulation
TIA-603: 70 dB
ETSI: 65 dB
Spurious response rejection
TIA-603: 70 dB
ETSI: 70 dB
Blocking
TIA-603: 80 dB
ETSI: 84 dB
Hum and noise
40 dB @12.5kHz
43 dB @20kHz
45 dB @25kHz
Rated audio power output
0.5 W
Rated audio distortion
<3%
Audio response
+1 to -3 dB
Conducted spurious emission
< -57 dBm
Transmitter
RF power output
UHF: 1W / 4W
VHF: 1W / 5W
FM modulation
11K0F3E @12.5kHz
14K0F3E @20kHz
16K0F3E @25kHz
4FSK digital modulation
12.5kHz data only: 7K60FXD
12.5kHz data and voice: 7K60FXW
Conducted/radiated emission
-36dBm @<1GHz; -30dBm @>1GHz
Modulation limiting
±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz
FM hum and noise
40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz
Adjacent channel power
60dB @12.5kHz; 70dB @20/25kHz
Audio distortion
<3%
Digital vocoder type
AMBE+2™
Digital protocol
ETSI-TS102 361-1,-2,-3
Environmental
Operating temperature
-30°C to +60°C (radio only / battery: -20 ℃)
Storage temperature
-40°C to +85°C
ESD
IEC 61000-4-2 (level 4)
±8 kV (contact)
±15 kV (air)
Ingress protection
IEC60529 - IP67
Drop, shock and vibration
per MIL-STD-810 H standard
Humidity
per MIL-STD-810 H standard
Location Service
GNSS
GPS, GPS+GLONASS, GPS+BDS
TTFF (time to first fix) cold start
< 1 minute
TTFF (time to first fix) hot start
< 10 seconds
Horizontal accuracy
< 5 meters
