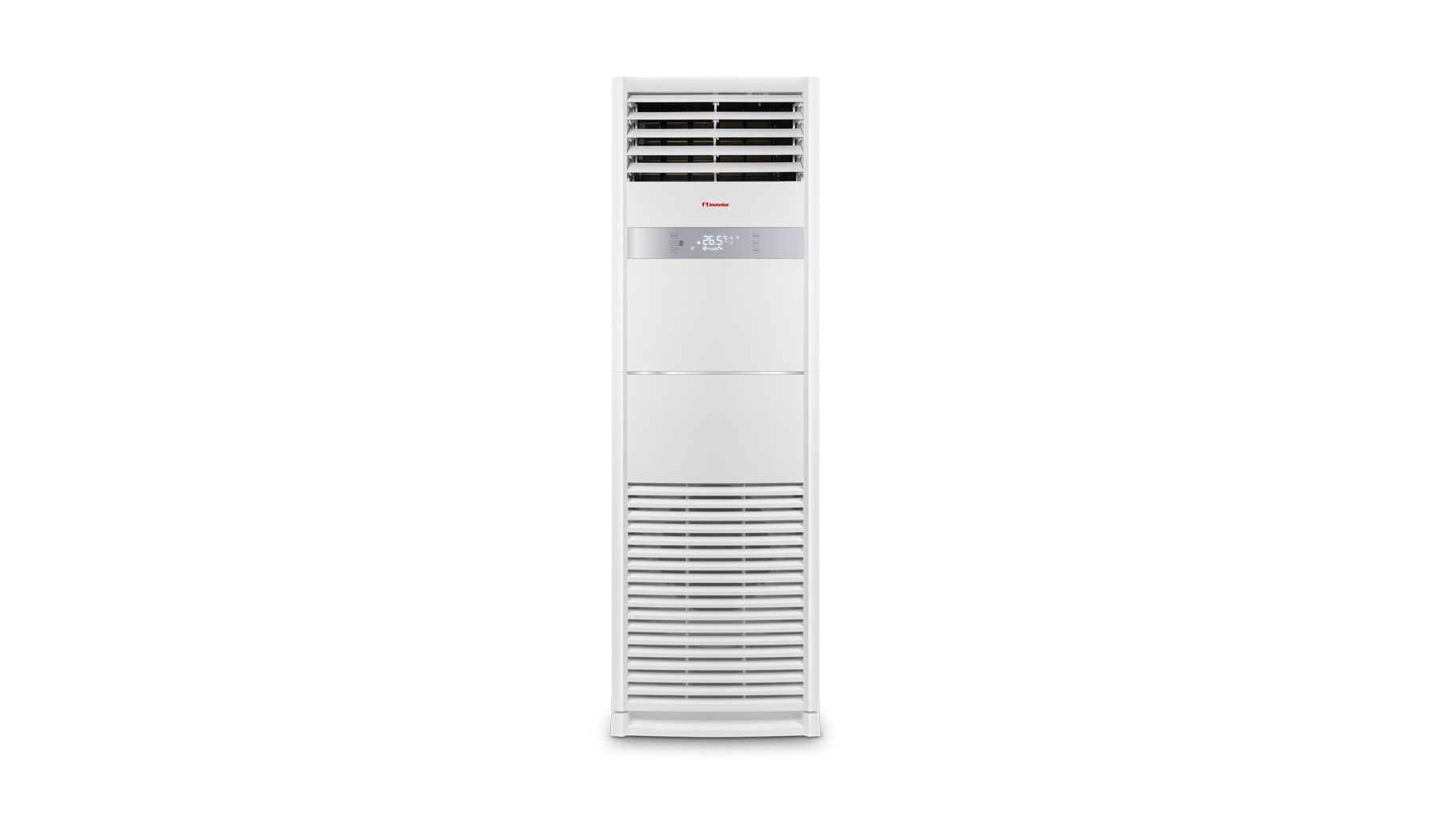

Inventor AIRCONDITION V7iFI-66 52000 BTU (2)

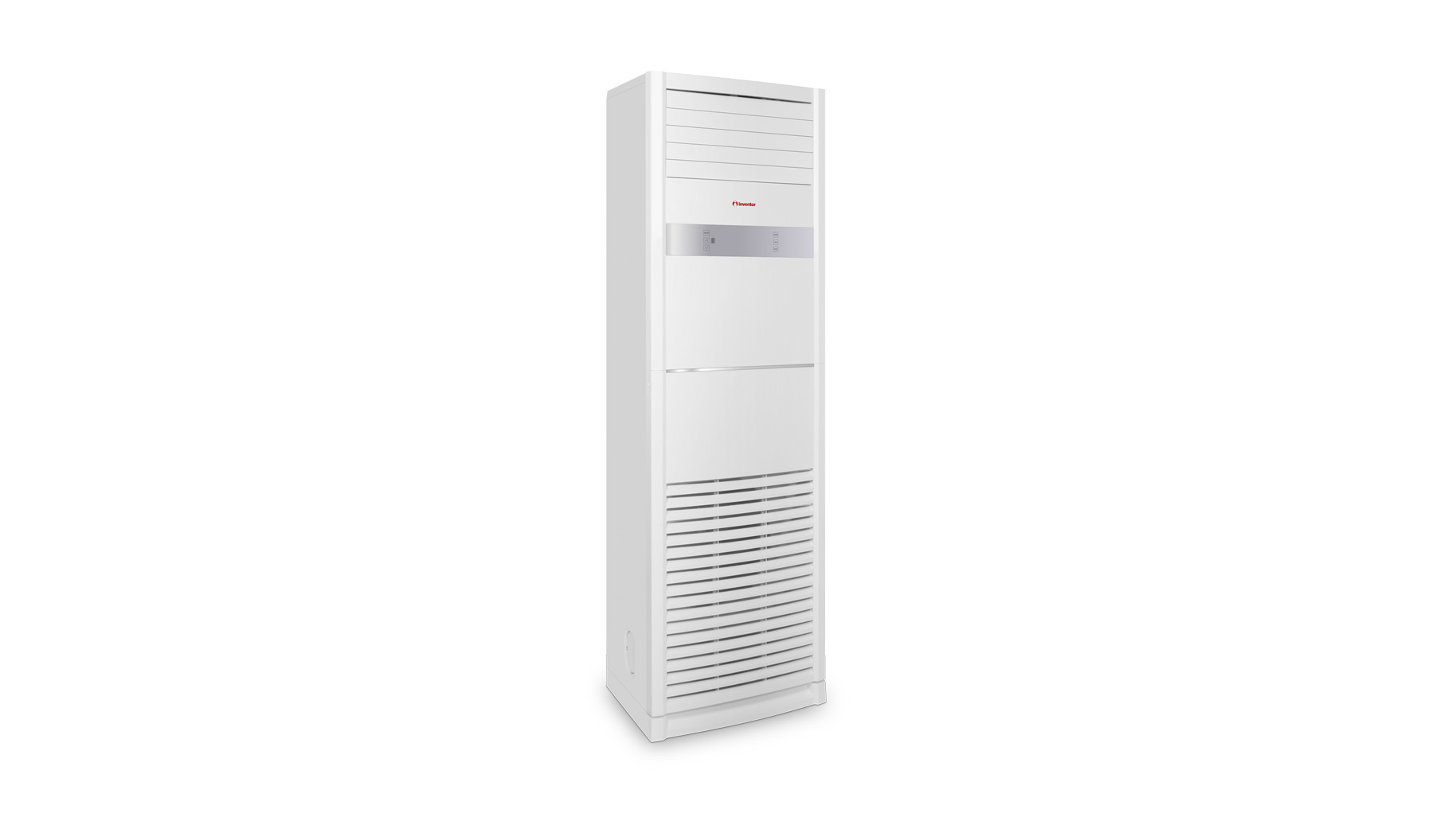

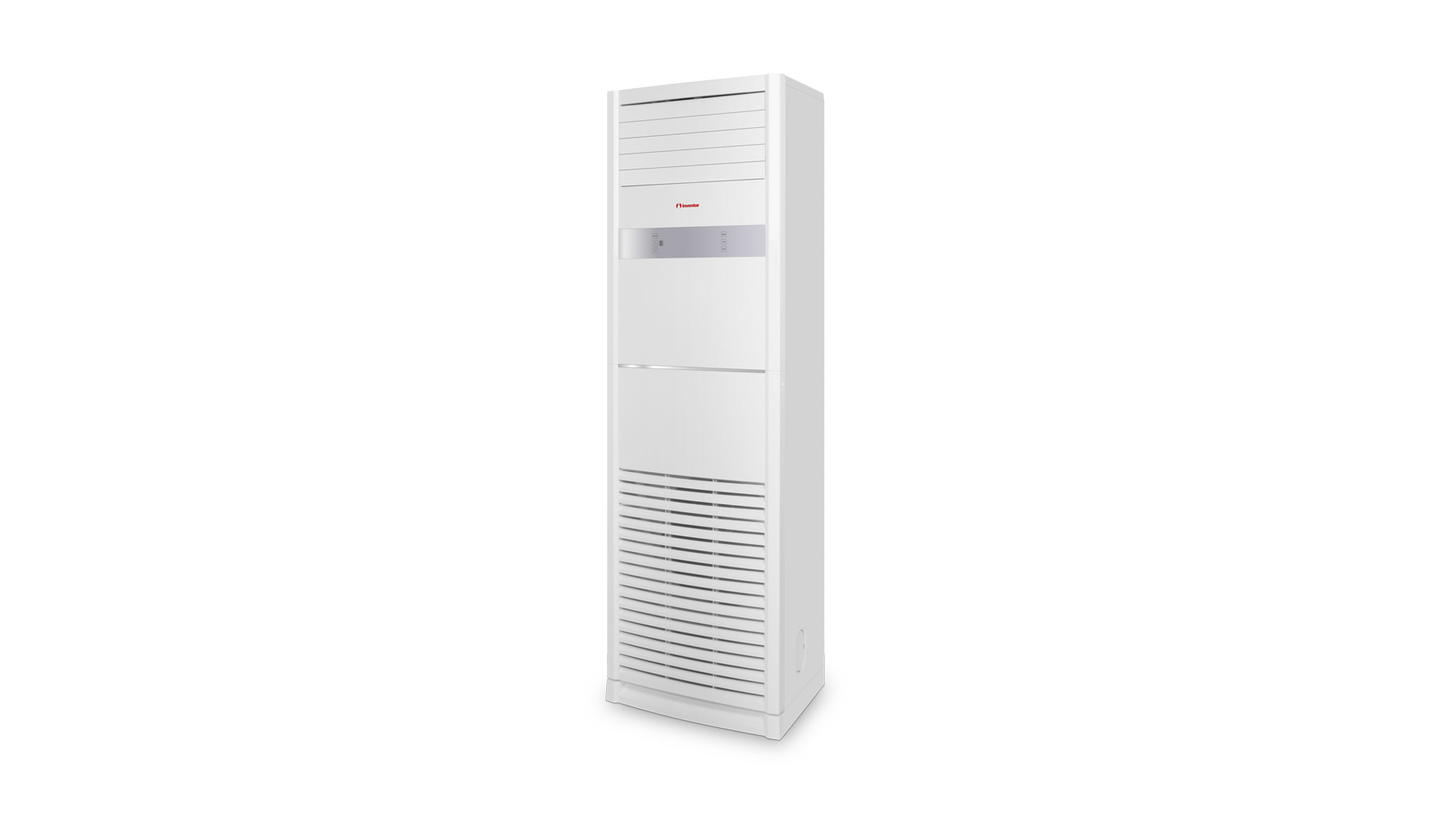

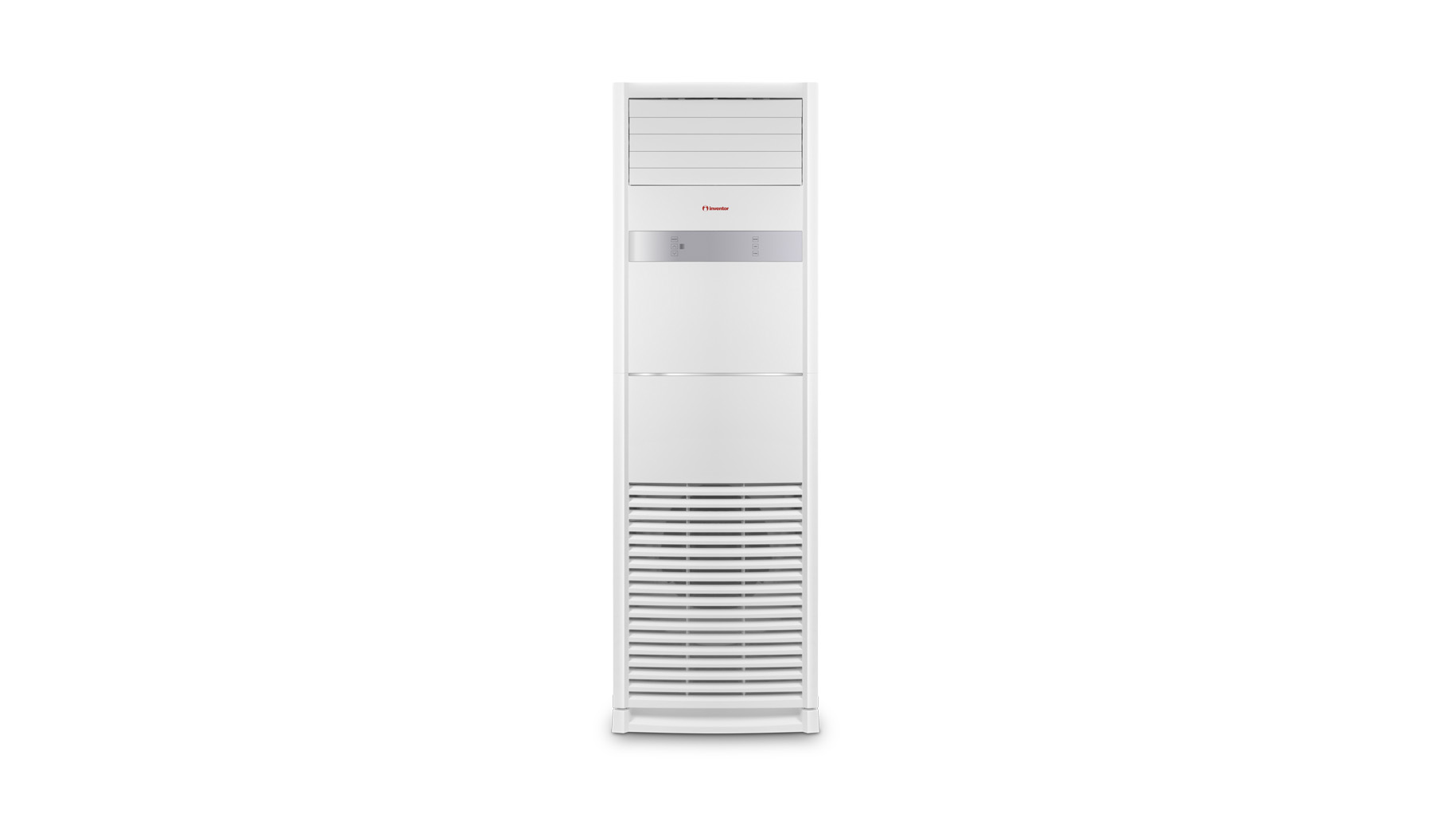

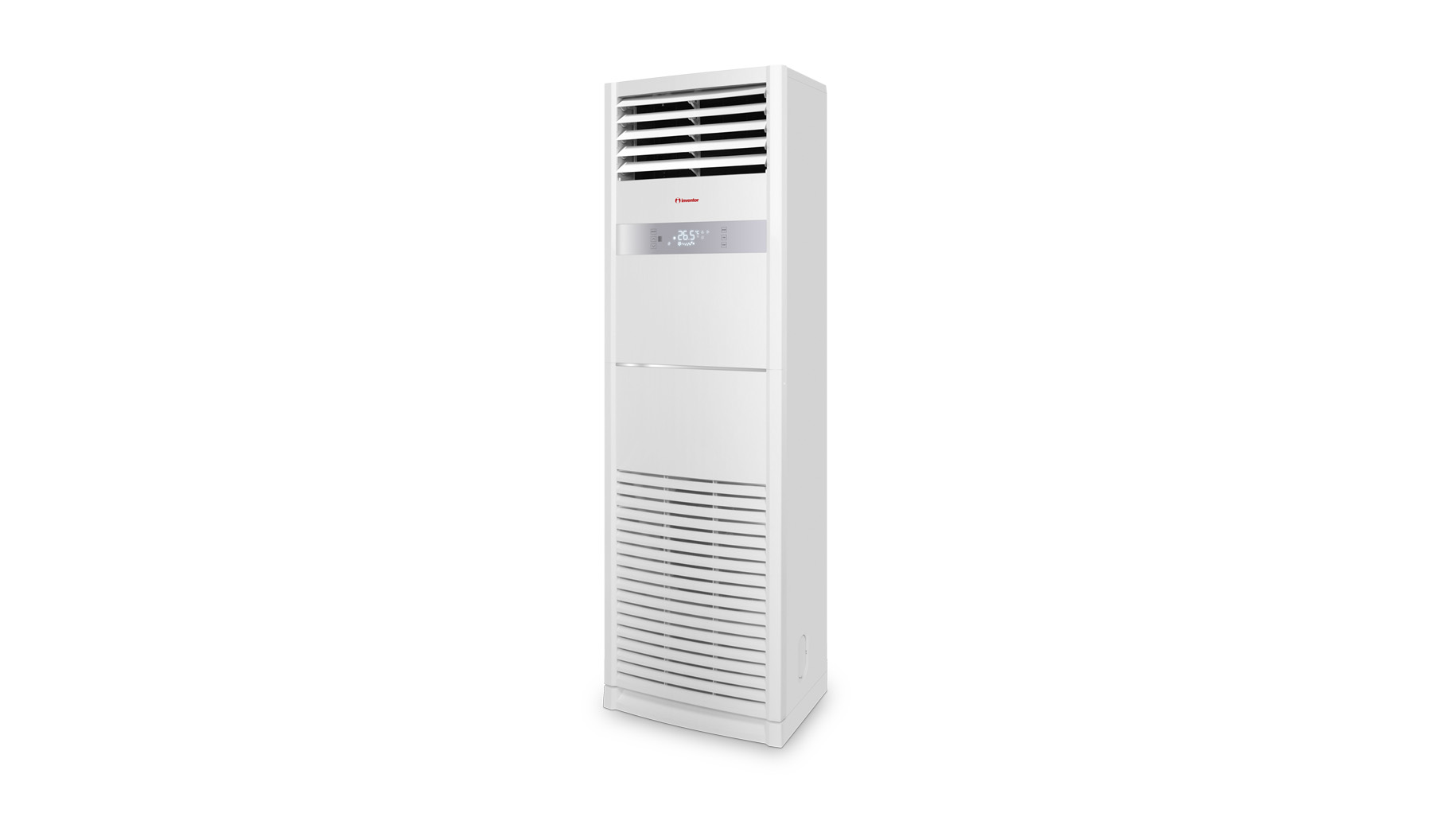

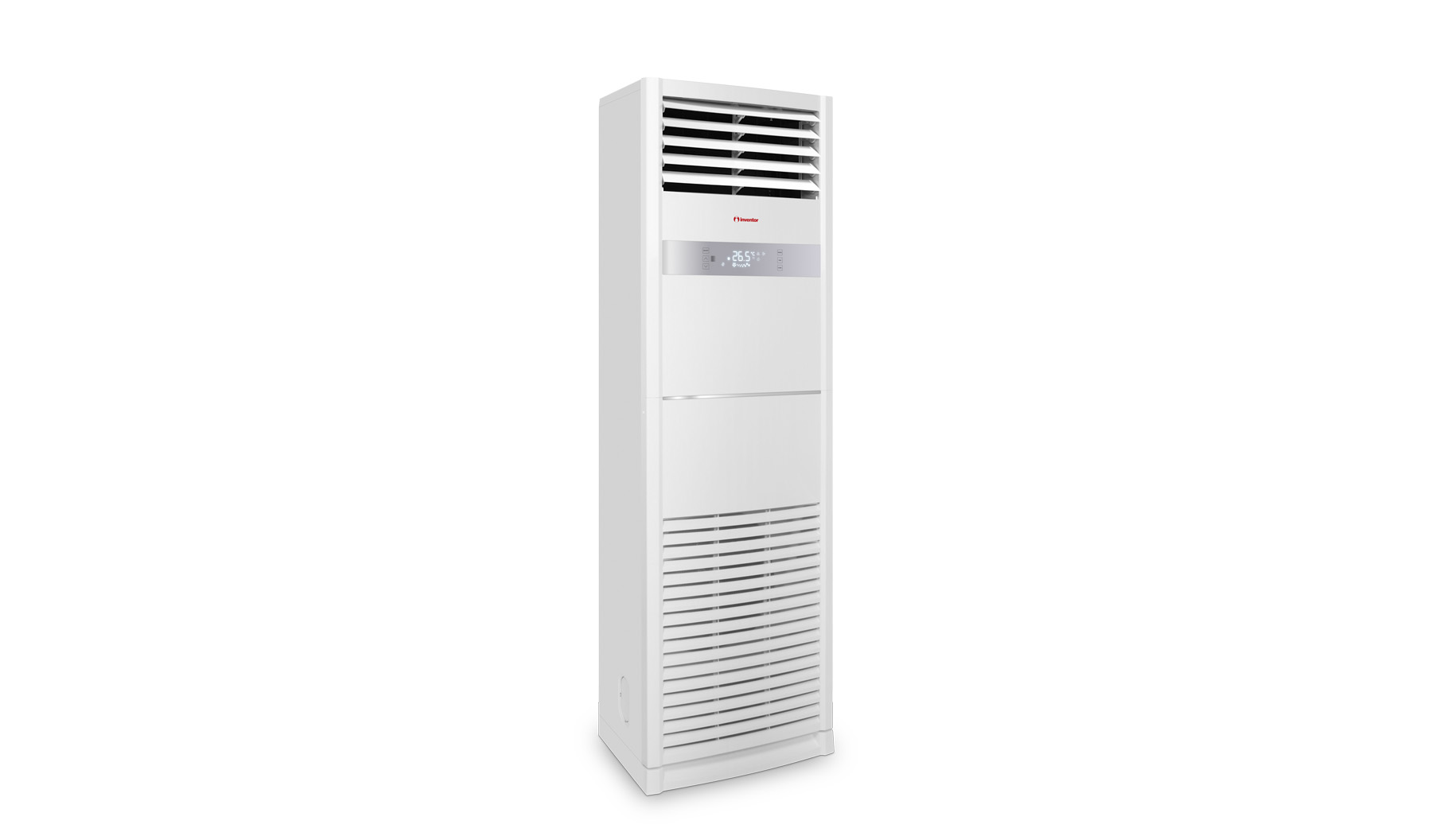

Ντουλάπα Εμφανούς Τύπου V7iFI-66

Indoor Unit Dimensions (WxDxH) : 610 x 390 x 1925 mm
Outdoor Unit Dimensions (WxDxH) : 980 x 415 x 975 mm
Net Weight (Indoor / Outdoor) : 60.8 / 112.8 kg
Cooling Capacity : 52000 (14000~55000) Btu / h
Cooling Capacity : 15.50 kWatt
Heating Capacity : 62000 (15000~64000) Btu / h
Heating Capacity : 18.20 kWatt
EER : 2.6
COP : 3.24
Seasonal Efficiency - According to EN 14825 (Cooling) - Design Load : 15.5 kW
Seasonal Efficiency - According to EN 14825 (Cooling) - Energy Class : A+
Seasonal Efficiency - According to EN 14825 (Cooling) - SEER : 5.7
Seasonal Efficiency - According to EN 14825 (Heating, Average Zone) - Design Load : 12.1 kW
Seasonal Efficiency - According to EN 14825 (Heating, Average Zone) - Energy Class : A
Seasonal Efficiency - According to EN 14825 (Heating, Average Zone) - SCOP : 3.8
Seasonal Efficiency - According to EN 14825 (Heating, Warm Zone) - Design Load : 11.7 kW
Seasonal Efficiency - According to EN 14825 (Heating, Warm Zone) - Energy Class : A++
Seasonal Efficiency - According to EN 14825 (Heating, Warm Zone) - SCOP : 5.0
Voltage / Frequency / Phase : 380-415 / 50 / 3 V / Hz / Ph
Operating Current - Cooling : 9.1 (2.1~11.7) A
Operating Current - Heating : 8.5 (2.1~11.7) A
Power Input - Cooling : 6.0 kW
Power Input - Heating : 5.6 kW
Air Flow - Indoor Unit (High / Medium / Low) : 1950 / 1750 / 1600 m³ / h
Air Flow - Outdoor Unit : 5600 m³ / h
Sound Pressure Level - Indoor Unit (Low / Medium / High) : 40 / 45.5 / 50.5 dB(A)
Sound Pressure Level - Outdoor Unit : 65 dB(A)
Sound Power Level - Indoor / Outdoor Unit : 65 / 74 dB(A)
Outdoor Unit Fuses : 5x2.5 / 3x16 No x mm² / A
Indoor Unit Fuses : 5x2.5 / 3x16 No x mm² / A
Control Cables : 4 x 1.5 Shielded No x mm²
Liquid Line - Gas Line : 3/8" | 5/8"
Refrigerant / Charge : R32 / 3.200 g
Outdoor Temperature Operating Range (Cooling / Heating) : -15~50 / -20~24 °C
