Inventor Ντουλάπα Εμφανούς Τύπου V6FI-60 (1)

Inventor Ντουλάπα Εμφανούς Τύπου V6FI-60

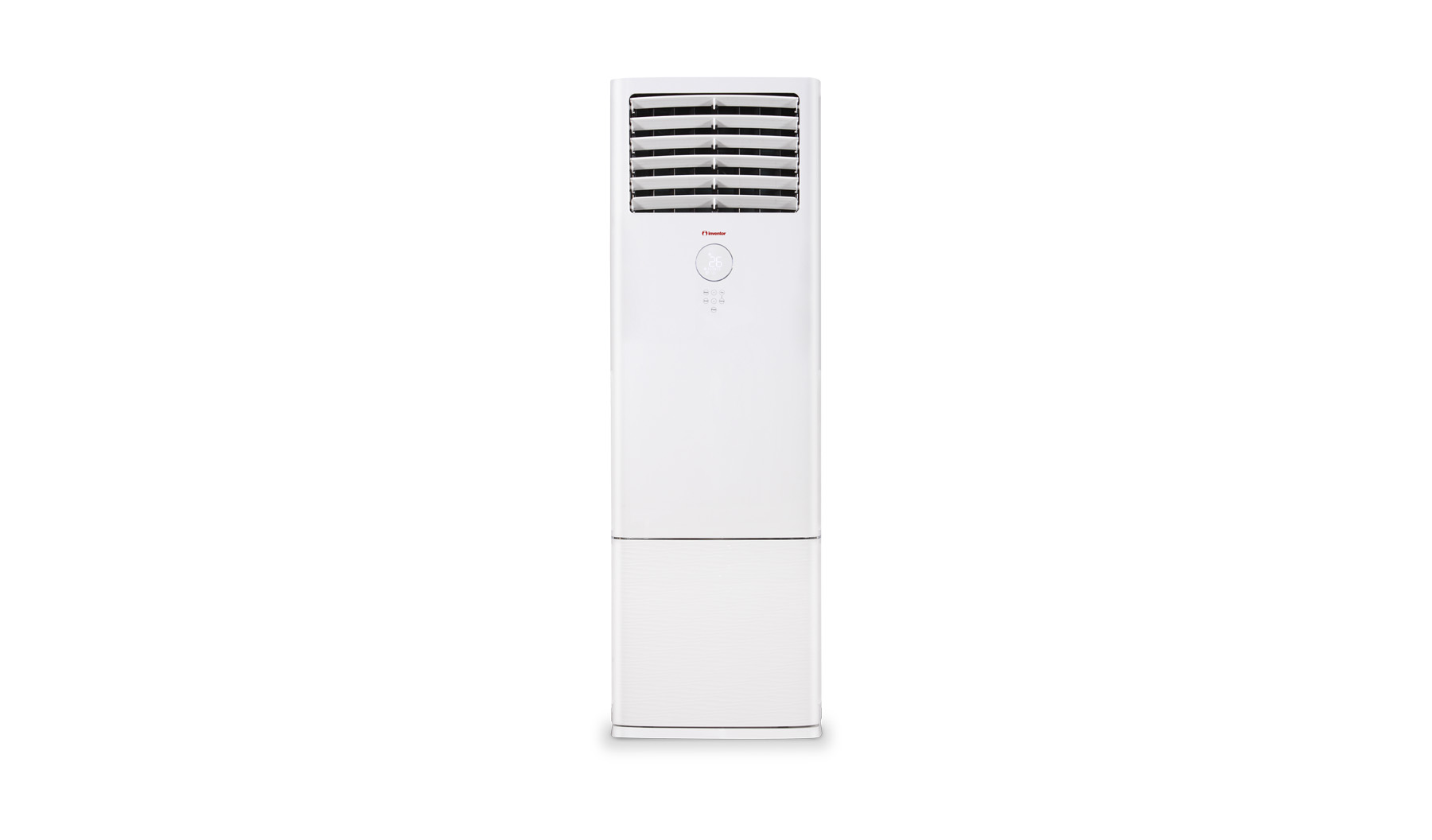

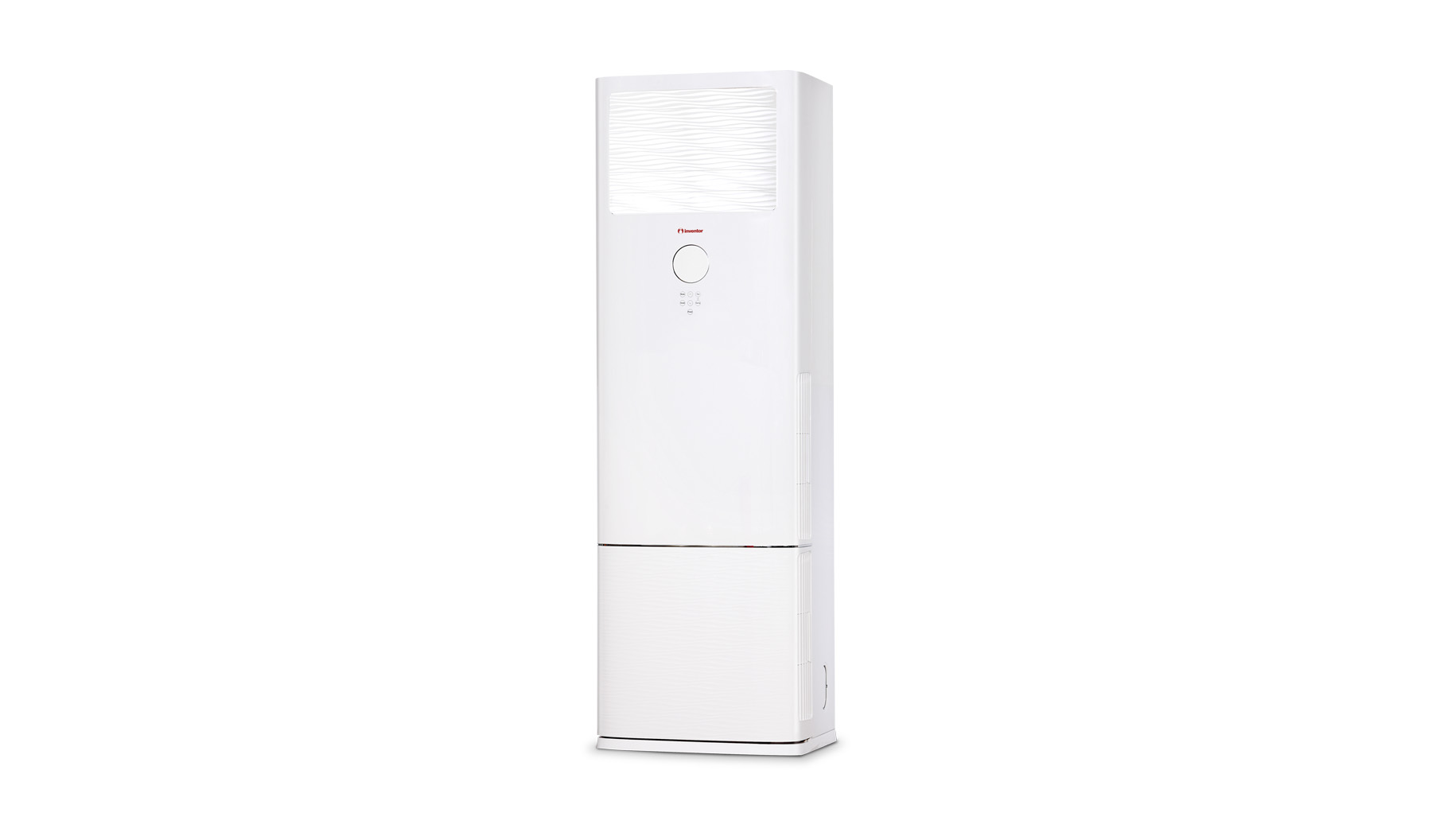

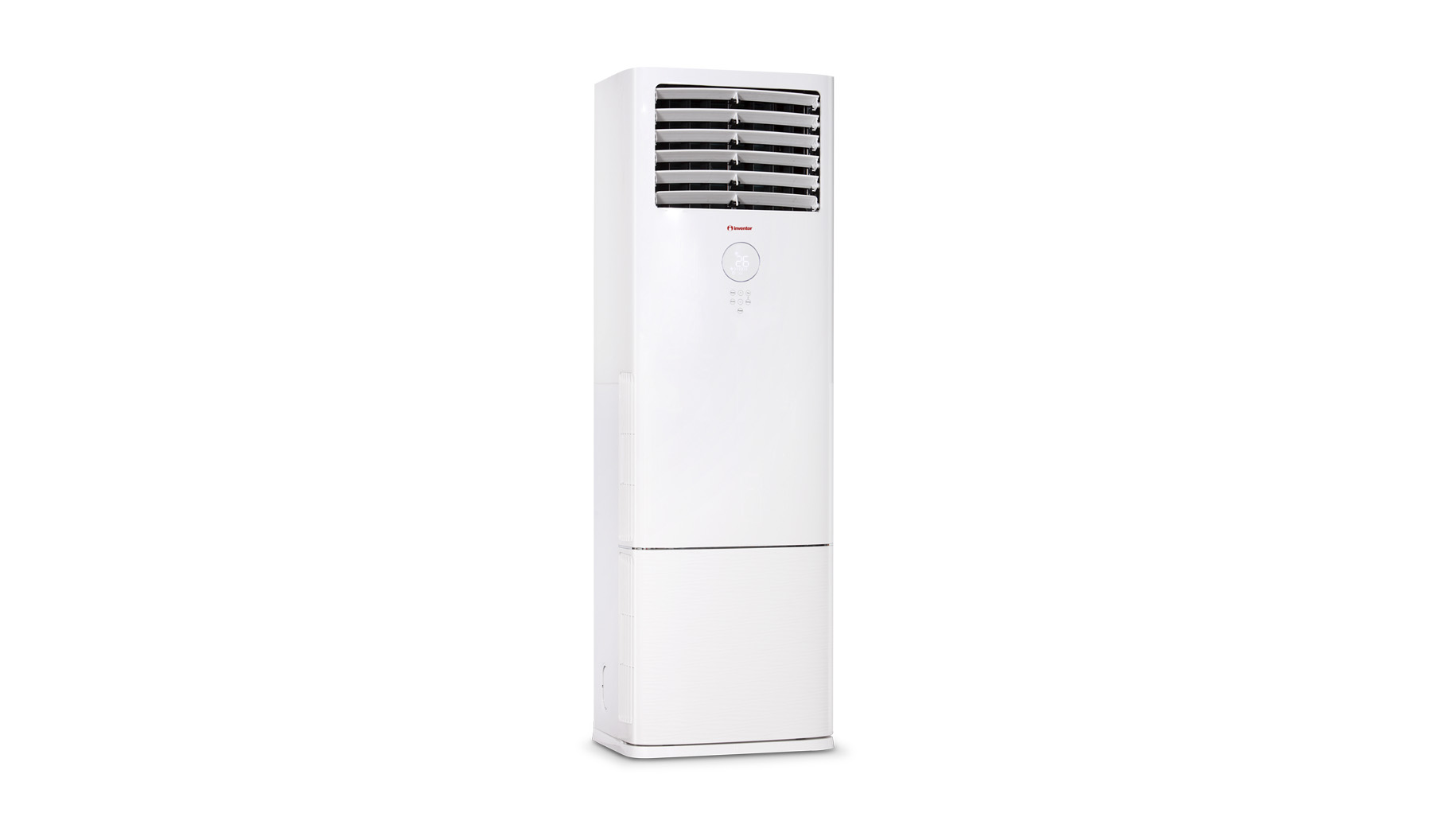

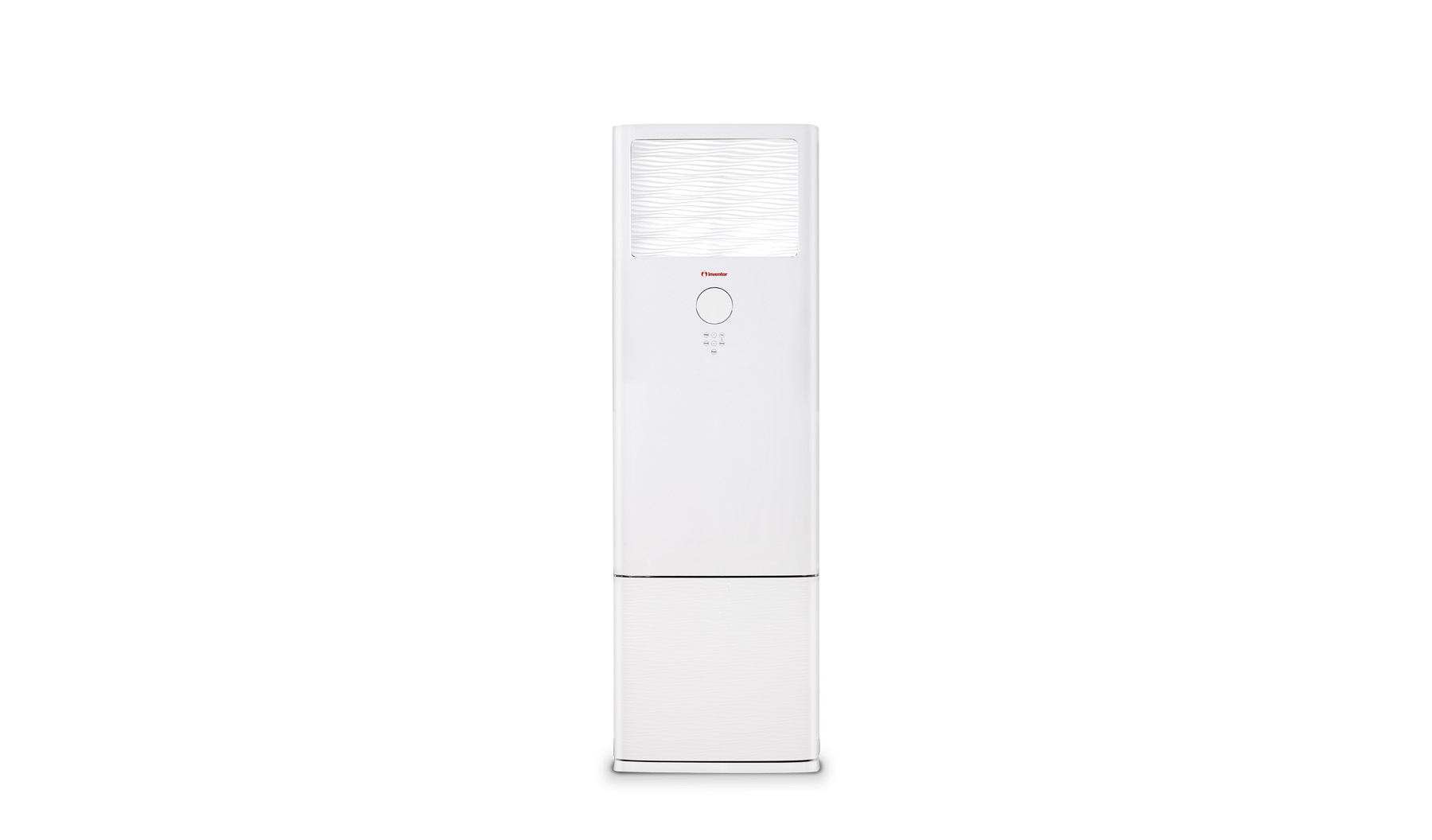

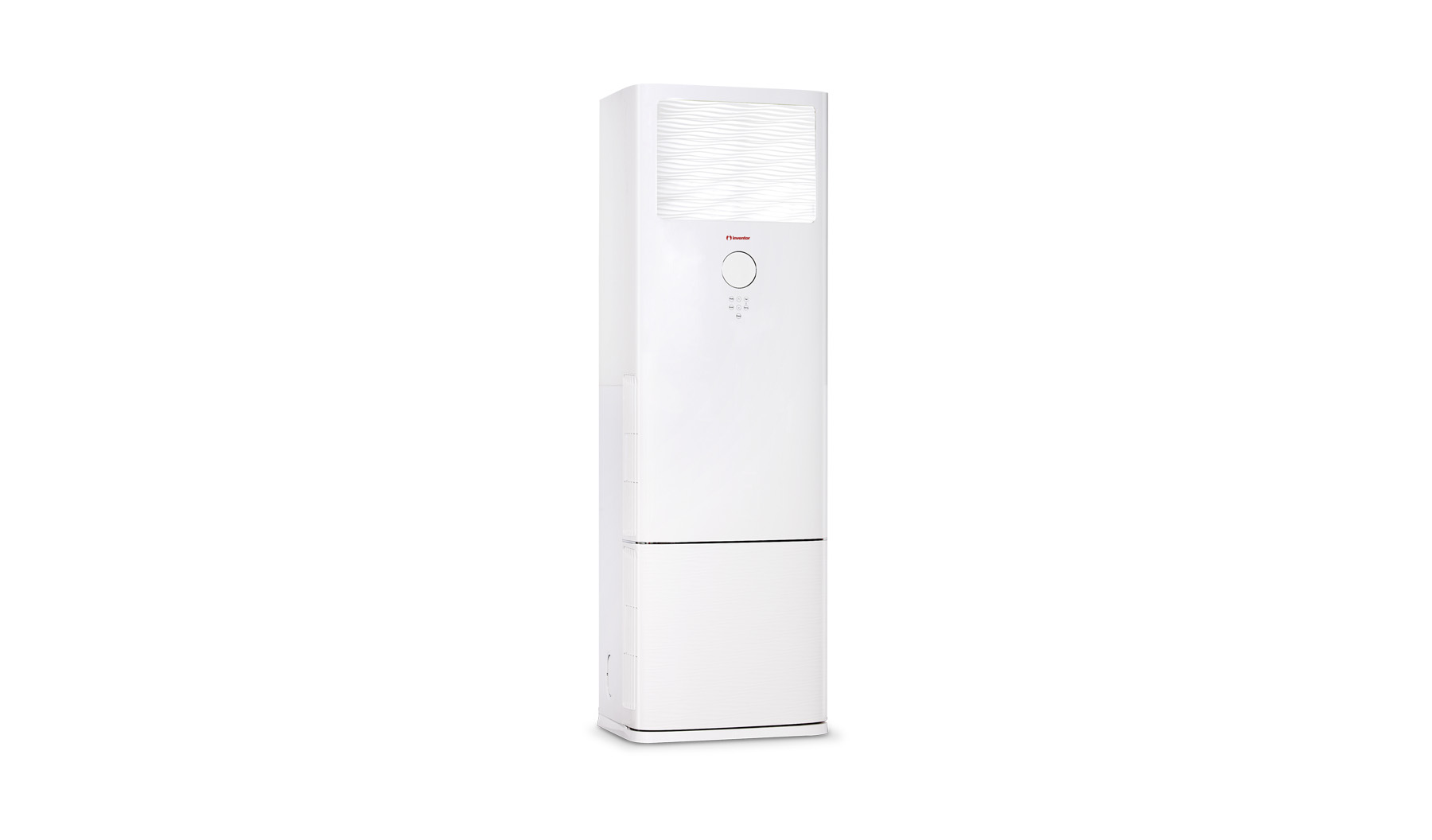

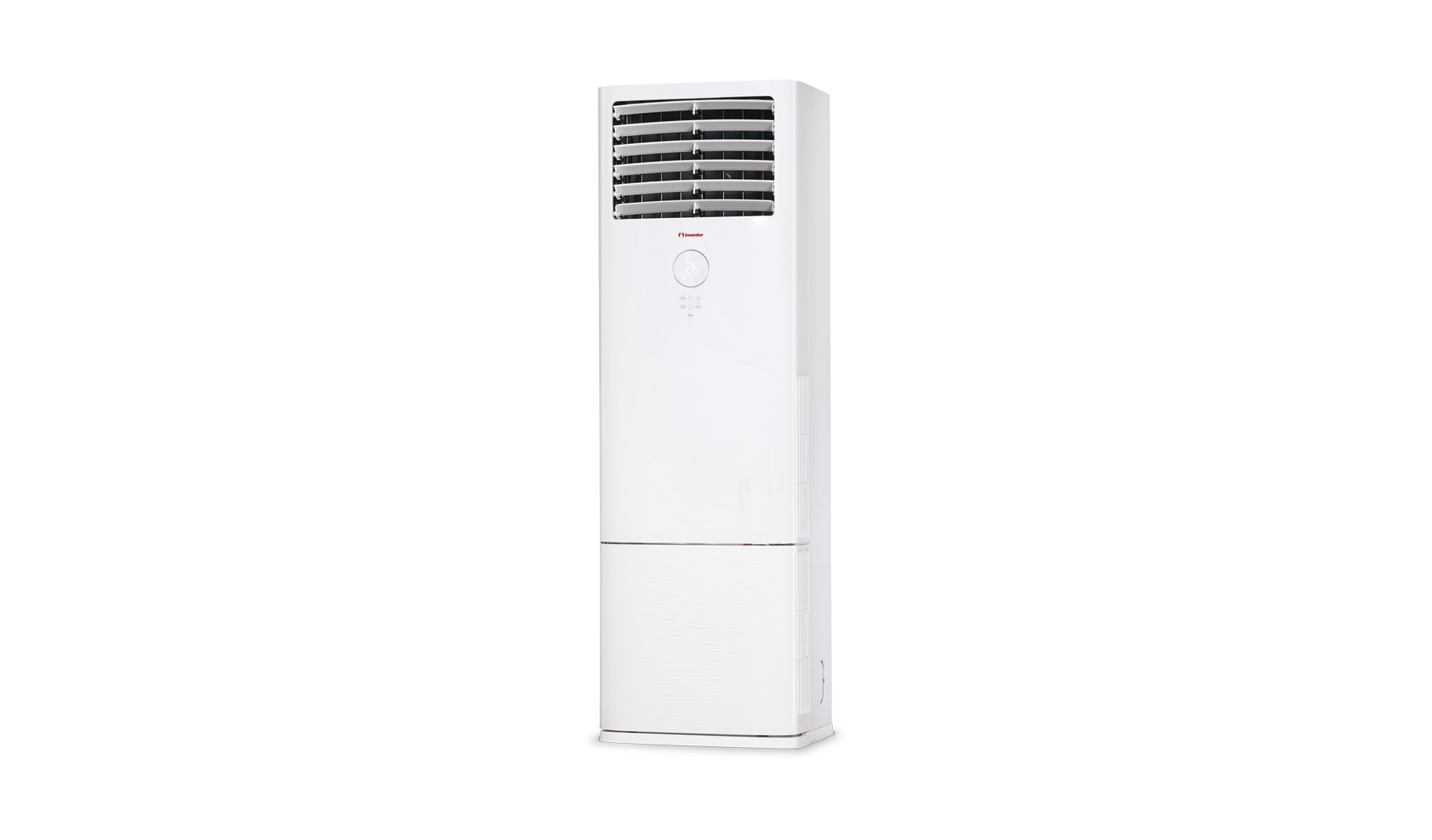

Indoor Unit Dimensions (WxDxH) : 629x456x1,935 mm

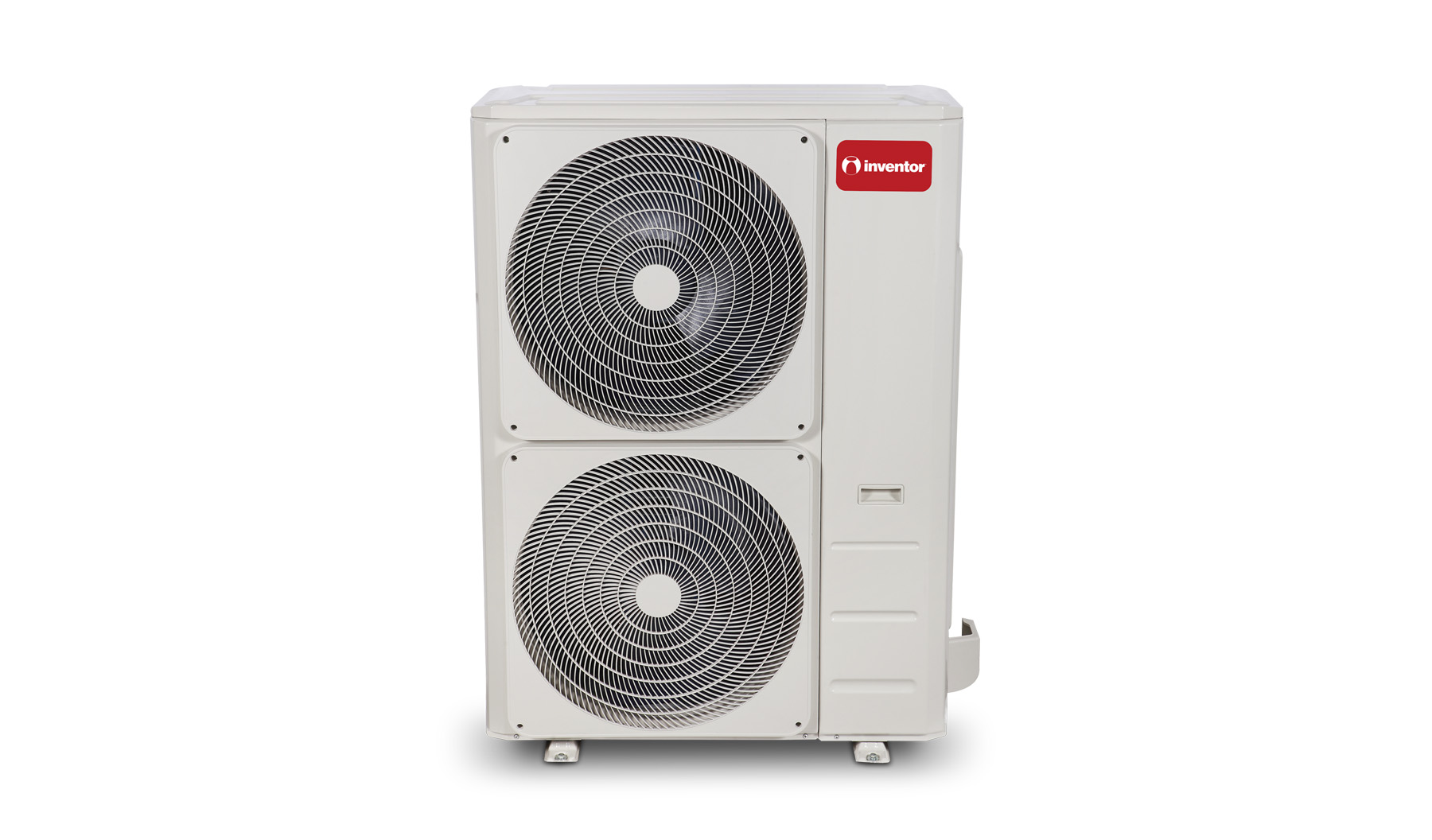

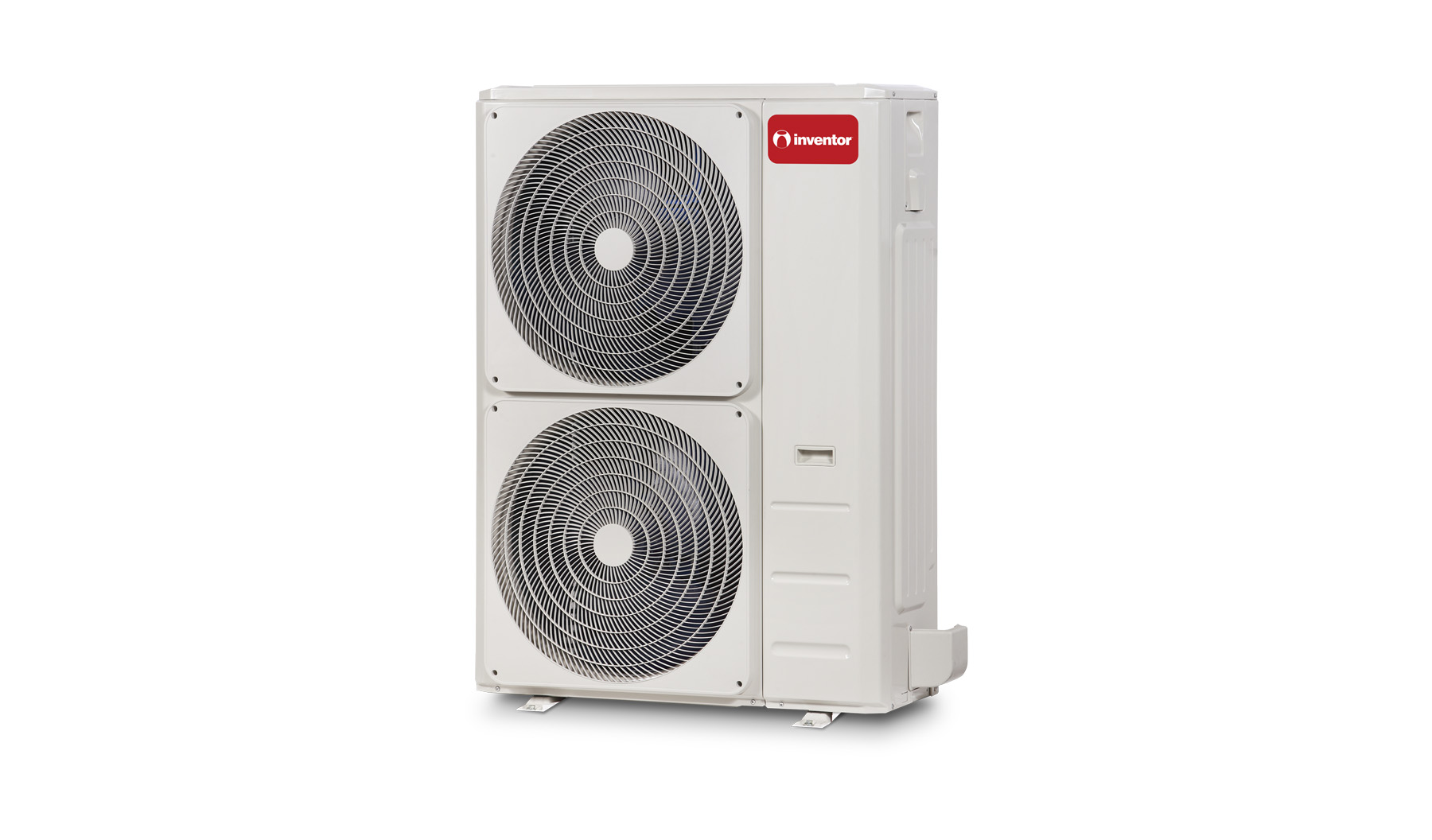

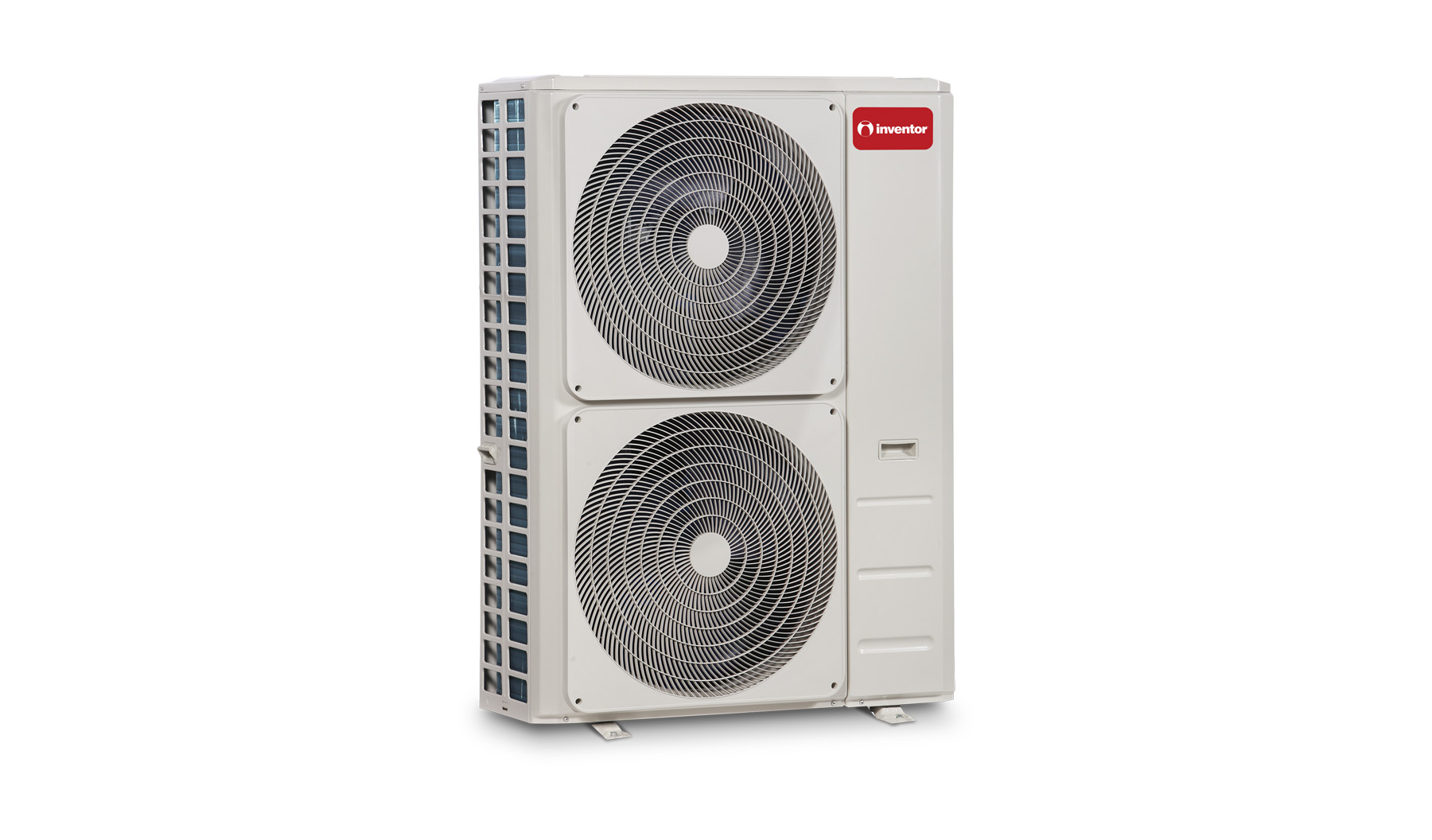

Outdoor Unit Dimensions (WxDxH) : 952x415x1,333 mm
Net Weight (Indoor / Outdoor) : 58.4 / 106.7 kg
Cooling Capacity : 48,000 (12,000-53,500) Btu/h
Cooling Capacity : 14.07 (3.52-15.68) kW
Heating Capacity : 55,000 (14,000-61,000) Btu/h
Heating Capacity : 16.12 (4.10-17.88) kW
EER : 2.84
COP : 3.16
Seasonal Efficiency - According to EN 14825 (Cooling) : —
Design Load : 14.0 kW
Energy Class : A++
SEER : 6.1
Seasonal Efficiency - According to EN 14825 (Heating, Average Zone) : —
Design Load : 10.8 kW
Energy Class : A+
SCOP : 3.7
Seasonal Efficiency - According to EN 14825 (Heating, Warm Zone) : —
Design Load : 11.0 kW
Energy Class : A+++
SCOP : 5.1
Voltage / Frequency / Phase : 380-415 / 50 / 3 V / Hz / Ph
Operating Current - Cooling : 8.00 (1.90-10.30) A
Operating Current - Heating : 8.50 (1.90-10.50) A
Power Consumption - Cooling : 4.95 (0.90-5.95) kW
Power Consumption - Heating : 5.10 (1.00-6.20) kW
Air Flow - Indoor Unit (High / Medium / Low) : 2,413 / 2,222 / 2,027 m³/h
Air Flow - Outdoor Unit : 7,500 m³/h
Sound Pressure Level - Indoor Unit (Low / Medium / High) : 47 / 49 / 53 dB(A)
Sound Pressure Level - Outdoor Unit : 67 dB(A)
Sound Power Level - Indoor / Outdoor Unit : 67 / 72 dB(A)
Fuses - Outdoor Unit : 3x16 A
Fuses - Indoor Unit : —
Control Cables : 4x1.5 No x mm²
Power Supply Cables Indoor / Outdoor : 5x2.5 No x mm²
Liquid Line - Gas Line : 3/8" - 5/8"
Refrigerant / Charge : R32 / 2,900 g
Outdoor Temperature Operating Range Cooling / Heating : -15~50 / -15~24 °C
