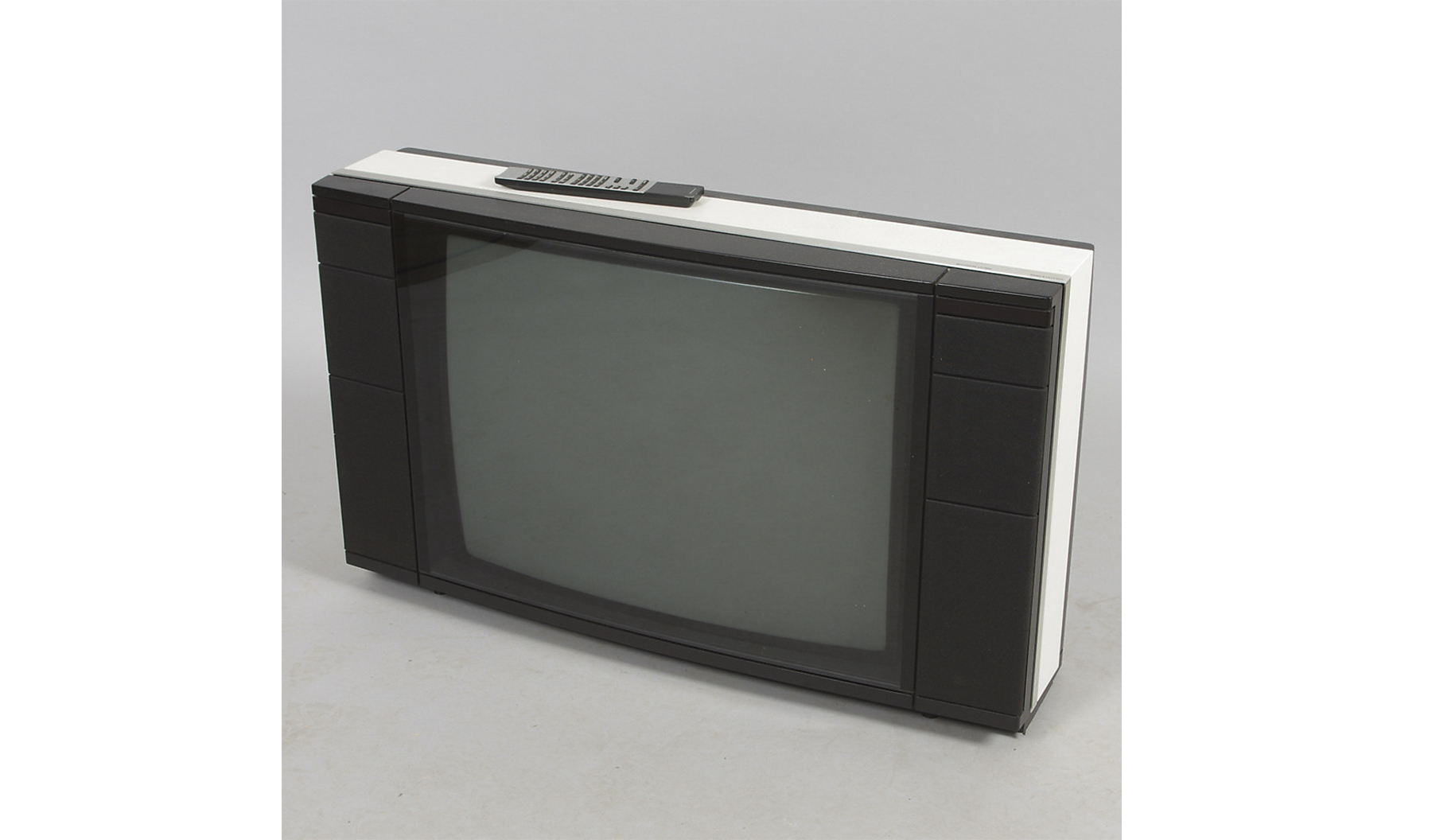

(1990) 32" Bang Olufsen BeoVision LX 2802 (1)

(1990) Bang Olufsen 32", BeoVision LX 2802

32"/ 81.28cm
Βάθος: 46 cm
Ύψος: 52 cm
Πλάτος: 86 cm
Connections: headphones output max 7.5V / 200 ohms
External speakers: 4 - 8 ohms
AUX 3 A/V Socket 6 pin DIN Video output 1 Vpp 75 ohms
Video input: 1 Vpp 75 ohms
Audio output: 1V 47 kohm
Audio input: 1 V 1 kohm
AUX 2 A/V Socket 21 pin Video
Βάρος: 43 kg
Operation: Beolink 1000
Datalink system: Beolink®
Compatible to older Beocord VCRs
Features: Stereo sound, stereo enhancement ,bilingual sound
Number of programmes: 32 VHF-UHF, S-channels
Range: VHF 46-300MHz, UHF 470-855 MHz
Picture tube: 45 AX 110° in line self-converging
Start time: approx. 5 sec
Aerial impedance: 75 ohms coaxial
Sound power output: 2 x 15 W / 8 ohms
Frequency range: 25 Hz - 20000 Hz +/- 1.5 dB
Bass control: +/- 8 dB / 100 Hz
Treble control: +/- 8 dB / 10000 Hz
Power supply: 180 - 265 V
Power frequency: 50 - 60 Hz
Power consumption: 95 (75-165) W
Stand-by: 3.5 W
Video, RGB, Fast blanking
