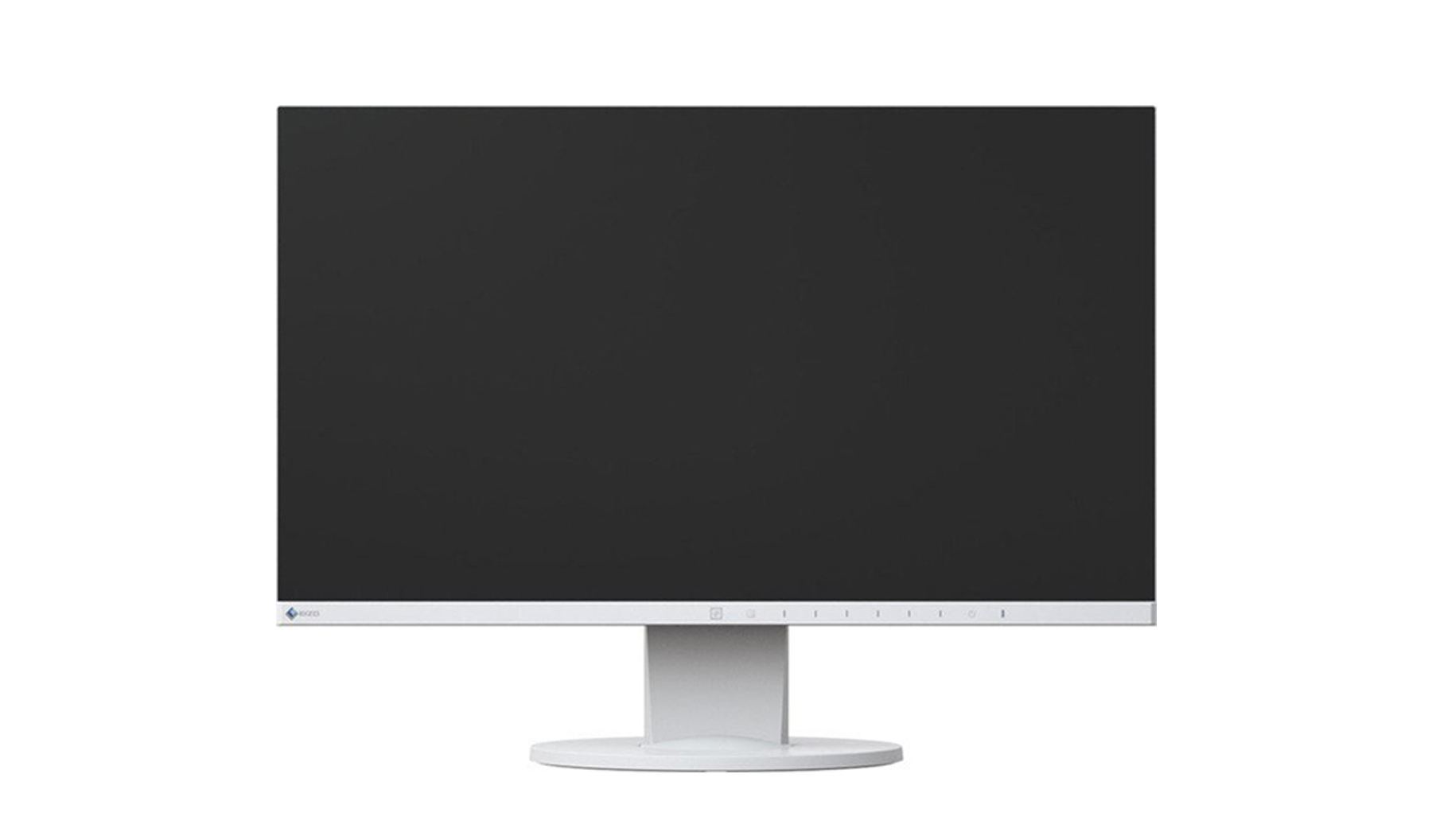

(2014) 23.8" EIZO FLEXSCAN EV2450 WHITE(6)

(2014) 23.8" EIZO FLEXSCAN EV2450 WHITE(1)

23.8" (60 cm) LCD Monitor
Physical Specifications
Dimensions (Landscape, W x H x D) 537.6 x 368 - 473.5 x 233 mm
Dimensions (Without Stand, W x H x D) 537.6 x 317.6 x 47.9 mm
Video Signals
Input Terminals D-Sub mini 15 pin x 1, DVI-D 24 pin x 1 (with HDCP), HDMI x 1 (with HDCP), DisplayPort x 1 (with HDCP)
Digital Scanning Frequency (H / V) 31 - 68 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
Analog Scanning Frequency (H / V) 31 - 81 kHz, 55 - 76 Hz
Sync Formats Separate
USB
Function 1 port for monitor control
2-port USB hub
Standard USB 3.0
Panel
Type IPS
Backlight LED
Size 23.8" / 60 cm (604 mm diagonal)
Native Resolution 1920 x 1080 (16: 9 aspect ratio)
Viewable Image Size (H x V) 527 x 296.4 mm
Pixel Pitch 0.2745 x 0.2745 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 250 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 5 ms (Gray-to-gray)

Audio
Speakers 1.0 W +1.0 W
Input Terminals 3.5 mm stereo jack
Output Terminals 3.5 mm headphone jack
Sound Adjustment Volume, Power Save, Source (DisplayPort, HDMI)
Power
Power Requirements AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
Maximum Power Consumption 47 W
Typical Power Consumption 12 W
Power Save Mode Less than 0.3 W
Power Management Power Save (VESA DPM, DisplayPort Rev. 1.1a, and DVI DMPM), Eco Timer
Features & Functions
Preset Modes Color mode (Paper, Movie, sRGB, User1, User2, DICOM)
Auto EcoView / BrightRegulator Yes
EcoView Sense Yes
OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
Physical Specifications
Dimensions (Landscape, W x H x D) 537.6 x 368 - 473.5 x 233 mm
Dimensions (Without Stand, W x H x D) 537.6 x 317.6 x 47.9 mm
Net Weight 6.2 kg / 13.7 lbs
Net Weight (Without Stand) 3.8 kg / 8.4 lbs
Height Adjustment Range 140 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90°(both clockwise and counter clockwise)
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35 °C
Operating Humidity (R.H., non condensing) 20 - 80 %
