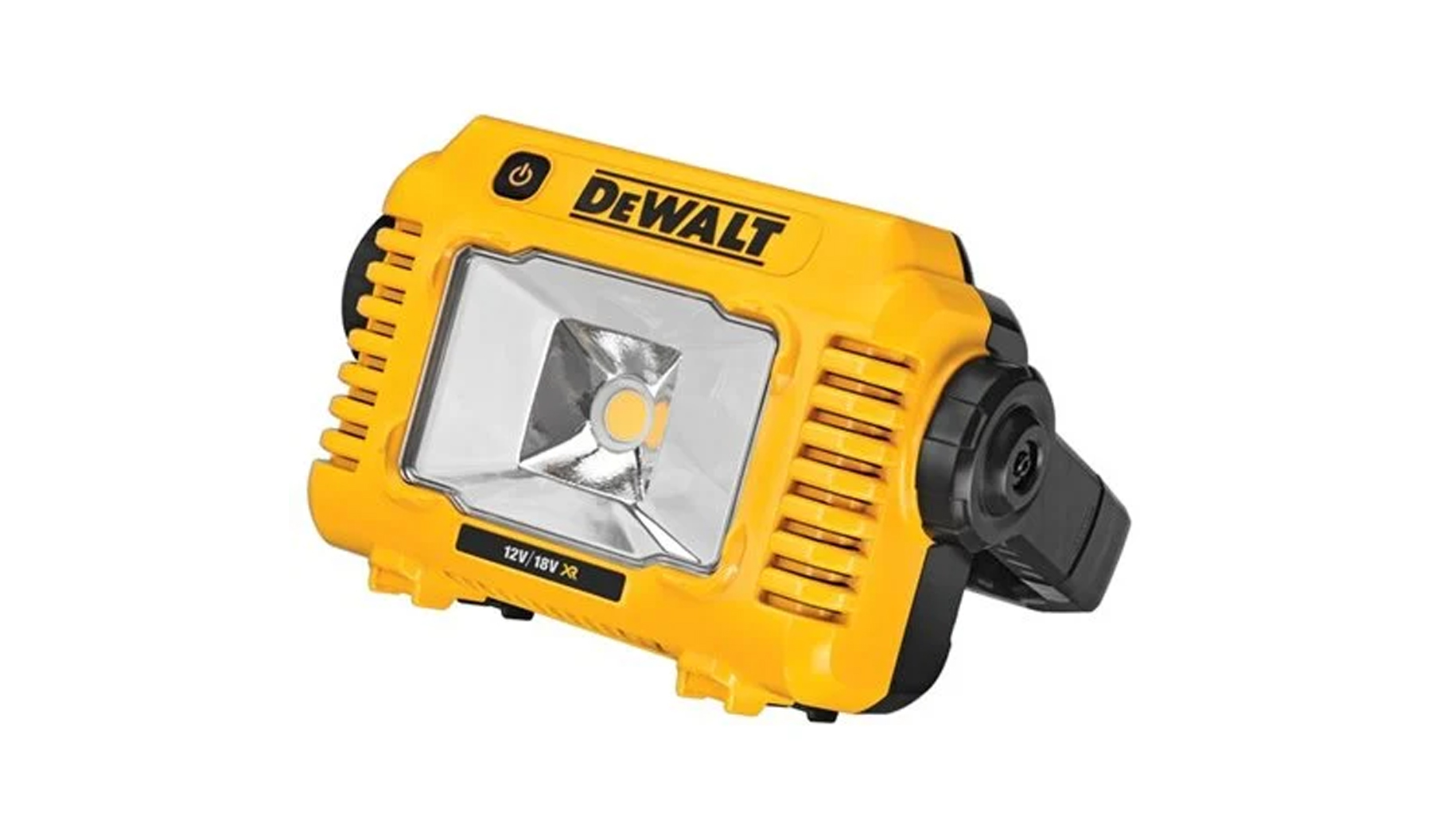

DeWALT DCL077 — 12V/18V XR LED Compact Task Light

DeWALT DCL077 — 12V/18V XR LED Compact Task Light

PHYSICAL DIMENSIONS
- Weight (tool only): 1.27 kg (2.8 lbs)
- Form factor: Compact

LIGHTING PERFORMANCE
- Light source: LED
- Maximum output: 2000 lumens
- Brightness settings: 3 steps — 500 lm / 1000 lm / 2000 lm
- Light color: Natural daylight hue (DeWALT does not publish an official Kelvin value; field measurements suggest approximately 4000K)

POWER & BATTERY COMPATIBILITY
- Battery platform: DeWALT XR Lithium-Ion
- Voltage compatibility: 12V Max and 18V / 20V Max
- FlexVolt compatibility: Yes — XR FlexVolt batteries accepted, operating at 18V (the tool is an 18V/20V Max unit; it does not run at 54V)
- Power source: Battery only (no AC mains inlet)

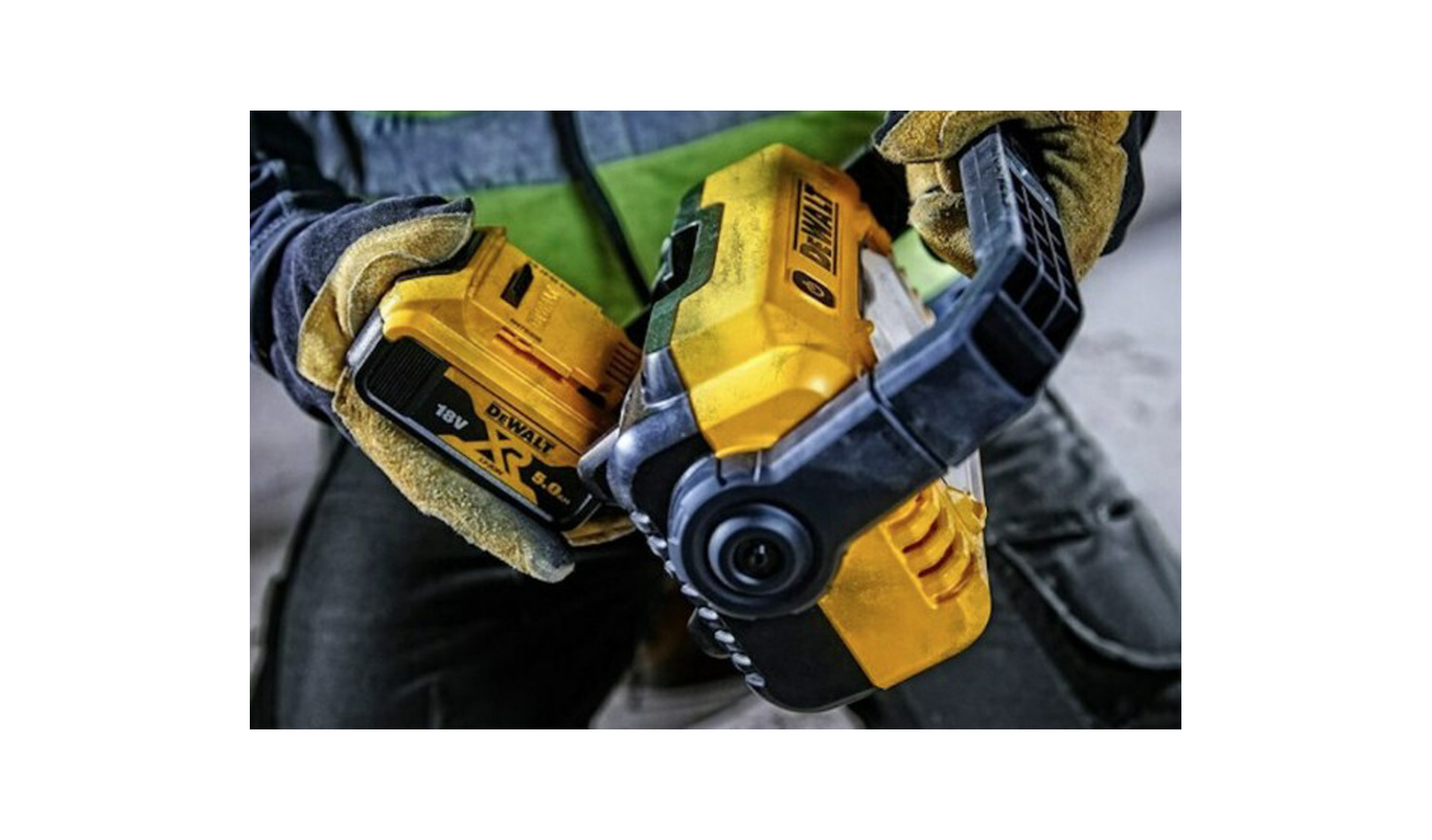

- Important: Batteries of 5.0Ah and larger will limit the rotation of the 360° handle. DeWALT recommends the DCB240 4.0Ah compact battery for unrestricted handle rotation.

BUILD & DURABILITY
- IP rating: IP54 (dust-protected and splash-water resistant)
- Housing: Impact-resistant construction
- Lens: Recessed LED behind protective lens with perimeter bezel

MOUNTING & ERGONOMICS

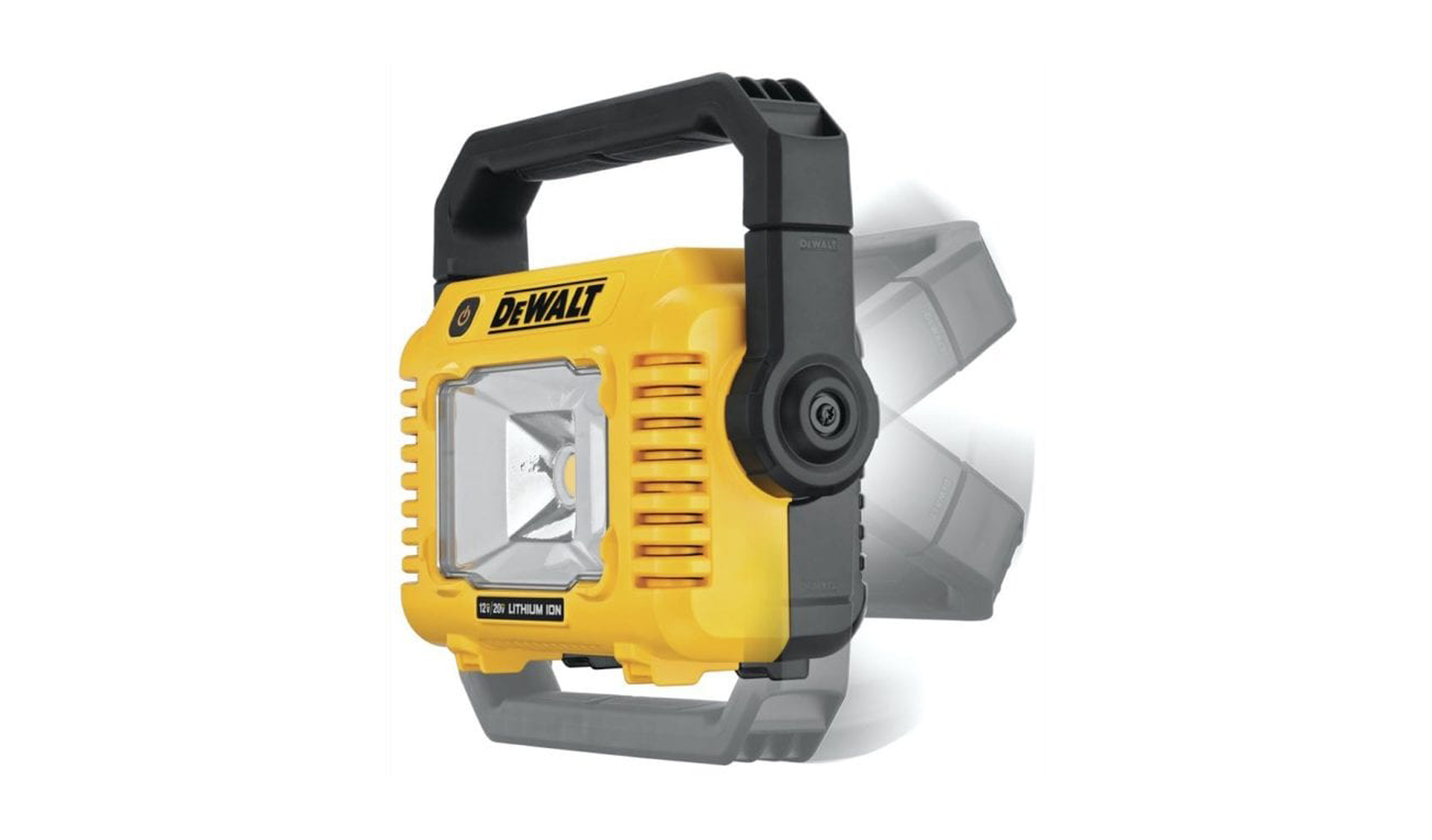

- 360° rotating handle with multiple positions
- Two tripod-thread mounts integrated into the handle:
• 1/4"-20
• 5/8"-11

ESTIMATED RUNTIME (with DeWALT 18V 5.0Ah XR Li-Ion battery, e.g. DCB184)
- Low (500 lm): up to 20 hours
- Medium (1000 lm): up to 10 hours
- High (2000 lm): up to 6 hours
(Manufacturer figures; real-world runtime varies with battery age, temperature, and capacity.)
