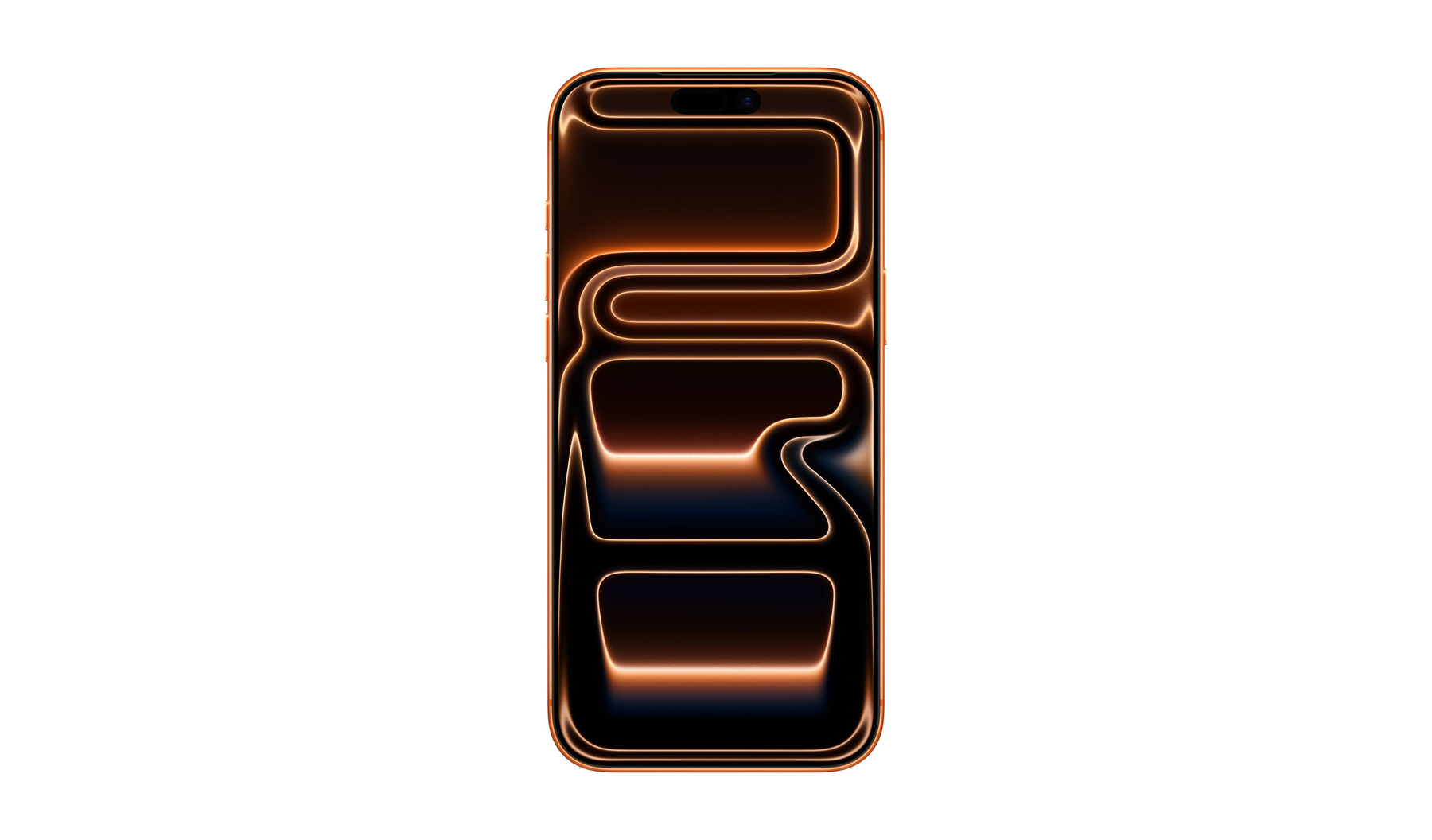

(2025) iPhone 17 PRO Max/ 6.9"/ 256GB/ Cosmic Orange

(2025) iPhone 17 PRO Max/ 6.9"/ 256GB/ Cosmic Orange

================================================================================
DESIGN & BUILD
================================================================================

Finish: Cosmic Orange
Construction: Aluminum unibody design
Front: Ceramic Shield 2
Back: Ceramic Shield

Dimensions:
- Width: 3.07 inches (78.0 mm)
- Height: 6.43 inches (163.4 mm)
- Depth: 0.34 inch (8.75 mm)
- Weight: 8.22 ounces (233 grams)

Water & Dust Resistance: Rated IP68
- Maximum depth of 6 meters up to 30 minutes under IEC standard 60529

================================================================================
DISPLAY
================================================================================

Type: Super Retina XDR display
Size: 6.9-inch (diagonal) all-screen OLED display
Resolution: 2868-by-1320-pixel resolution at 460 ppi
Screen Size (measured as rectangle): 6.86 inches diagonally

Display Features:
- Dynamic Island
- Always-On display
- ProMotion technology with adaptive refresh rates up to 120Hz
- HDR display
- True Tone
- Wide color (P3)
- Haptic Touch
- 2,000,000:1 contrast ratio (typical)
- 1000 nits max brightness (typical)
- 1600 nits peak brightness (HDR)
- 3000 nits peak brightness (outdoor)
- 1 nit minimum brightness
- Fingerprint-resistant oleophobic coating
- Anti-reflective coating
- Support for display of multiple languages and characters simultaneously

Note: Display has rounded corners that follow a curved design. Actual viewable
area is less than the diagonal measurement.

================================================================================
CHIP & PERFORMANCE
================================================================================

Chip: A19 Pro chip

Specifications:
- 6-core CPU with 2 performance and 4 efficiency cores
- 6-core GPU with Neural Accelerators
- 16-core Neural Engine
- Hardware-accelerated ray tracing

Internal Features:
- Vapor chamber cooling system with deionized water sealed inside
- Moves heat away from the A19 Pro chip for sustained high performance

================================================================================
CAMERA SYSTEM
================================================================================

REAR CAMERA SYSTEM - 48MP Pro Fusion camera system

1. 48MP Fusion Main Camera:
- 24 mm focal length
- ƒ/1.78 aperture
- Second-generation sensor-shift optical image stabilization
- 100% Focus Pixels
- Support for super-high-resolution photos (24MP and 48MP)
- Also enables 12MP optical-quality 2x Telephoto (48 mm, ƒ/1.78 aperture)

2. 48MP Fusion Ultra Wide Camera:
- 13 mm focal length
- ƒ/2.2 aperture
- 120° field of view
- Hybrid Focus Pixels
- Super-high-resolution photos (48MP)

3. 48MP Fusion Telephoto Camera:
- 100 mm (4x optical zoom)
- ƒ/2.8 aperture
- Hybrid Focus Pixels
- 3D sensor-shift optical image stabilization and autofocus
- Tetraprism design
- Also enables 12MP optical-quality 8x Telephoto (200 mm, ƒ/2.8 aperture)

Zoom Capabilities:
- 8x optical-quality zoom in
- 2x optical zoom out
- 16x optical-quality zoom range
- Digital zoom up to 40x

Camera Features:
- Customizable default lens (Fusion Main)
- Sapphire crystal lens cover
- Adaptive True Tone flash
- Photonic Engine
- Deep Fusion
- Smart HDR 5
- Next-generation portraits with Focus and Depth Control
- Portrait Lighting with six effects
- Night mode
- Panorama (up to 63MP)
- Latest-generation Photographic Styles
- Spatial photos
- 48MP macro photography
- ProRAW
- Wide color capture for photos and Live Photos
- Lens correction (Fusion Ultra Wide)
- Advanced red-eye correction
- Auto image stabilization
- Burst mode
- Photo geotagging

Image Formats: HEIF, JPEG, and DNG

FRONT CAMERA - 18MP Center Stage camera

Specifications:
- 18MP sensor
- ƒ/1.9 aperture
- Autofocus with Focus Pixels
- Retina Flash

Front Camera Features:
- Center Stage for photos
- Tap to zoom and rotate
- Ultra-stabilized video
- Dual Capture
- Center Stage for video calls
- Photonic Engine
- Deep Fusion
- Smart HDR 5
- Next-generation portraits with Focus and Depth Control
- Portrait Lighting with six effects
- Animoji and Memoji
- Night mode
- Latest-generation Photographic Styles
- ProRAW
- Wide color capture for photos and Live Photos
- Lens correction
- Auto image stabilization
- Burst mode

================================================================================
VIDEO RECORDING
================================================================================

REAR CAMERA VIDEO RECORDING:

4K Dolby Vision Video Recording:
- 24 fps, 25 fps, 30 fps, 60 fps, 100 fps (Fusion Main), or 120 fps (Fusion Main)

1080p Dolby Vision Video Recording:
- 25 fps, 30 fps, 60 fps, or 120 fps (Fusion Main)

720p Dolby Vision Video Recording:
- 30 fps

Professional Video Features:
- Cinematic mode up to 4K Dolby Vision at 30 fps
- Action mode up to 2.8K Dolby Vision at 60 fps
- Spatial video recording at 1080p at 30 fps
- ProRes video recording up to 4K at 120 fps with external recording
- ProRes RAW
- Academy Color Encoding System
- Apple Log 2
- Genlock support
- Macro video recording, including slo-mo and time-lapse
- Slo-mo video support for 1080p up to 240 fps and 4K Dolby Vision up to 120 fps
- Dual Capture up to 4K Dolby Vision at 30 fps
- Time-lapse video with stabilization
- Night mode Time-lapse
- QuickTake video up to 4K Dolby Vision at 60 fps

Video Recording Features:
- Second-generation sensor-shift optical image stabilization for video (Fusion Main)
- 3D sensor-shift optical image stabilization and autofocus for video (Fusion Telephoto)
- Digital zoom up to 15x
- Audio zoom
- True Tone flash
- Cinematic video stabilization (4K, 1080p, and 720p)
- Continuous autofocus video
- Take 8MP still photos while recording 4K video
- Playback zoom

Video Formats: HEVC, H.264, ProRes, and ProRes RAW
Audio: Spatial Audio and stereo recording, Four studio-quality mics, Wind noise
reduction, Audio Mix

FRONT CAMERA VIDEO RECORDING:

- 4K Dolby Vision video recording at 24 fps, 25 fps, 30 fps, or 60 fps
- 1080p Dolby Vision video recording at 25 fps, 30 fps, or 60 fps
- Cinematic mode up to 4K Dolby Vision at 30 fps
- ProRes video recording up to 4K at 60 fps with external recording
- ProRes RAW
- Academy Color Encoding System
- Apple Log 2
- Slo-mo video support for 1080p at 120 fps
- Time-lapse video with stabilization
- Night mode Time-lapse
- QuickTake video up to 4K at 60 fps in Dolby Vision
- Cinematic video stabilization (4K, 1080p, and 720p)
- Spatial Audio and stereo recording
- Wind noise reduction
- Audio Mix

================================================================================
BATTERY & POWER
================================================================================

Battery Type: Built-in rechargeable lithium-ion battery

Battery Life:
- Video playback: Up to 39 hours
- Video playback (streamed): Up to 35 hours

Fast Charging:
- Up to 50% charge in 20 minutes with 40W adapter or higher (available
separately) paired with USB-C charging cable
- Up to 50% charge in 30 minutes with 30W adapter or higher paired with MagSafe
Charger (both available separately)

================================================================================
CHARGING & CONNECTIVITY
================================================================================

USB-C CONNECTOR with support for:
- Charging
- DisplayPort
- USB 3 (up to 10Gb/s)

MAGSAFE & WIRELESS CHARGING:
- MagSafe wireless charging up to 25W
- Qi2 wireless charging up to 25W
- Magnet array
- Alignment magnet
- Accessory Identification NFC
- Magnetometer

LOCATION SERVICES
================================================================================

- Precision dual-frequency GPS (GPS, GLONASS, Galileo, QZSS, BeiDou, and NavIC)
- Digital compass
- Wi-Fi
- Cellular
- iBeacon microlocation

================================================================================
SENSORS
================================================================================

- Face ID (enabled by TrueDepth technology in Center Stage front camera)
- LiDAR Scanner
- Barometer
- High dynamic range gyro
- High-g accelerometer
- Proximity sensor
- Dual ambient light sensors

================================================================================
EXTERNAL BUTTONS & CONNECTORS
================================================================================

Physical Buttons:
- Volume up/down
- Action button
- Camera Control
- Side button

Connectors & I/O:
- USB-C connector
- Built-in microphones
- Built-in stereo speaker

ACTION BUTTON FEATURES:
Silent mode, Focus, Camera, Visual Intelligence, Flashlight, Voice Memo,
Recognize Music, Translate, Magnifier, Controls, Shortcut, or Accessibility

CAMERA CONTROL FEATURES:
Exposure, Depth, Zoom, Cameras, Styles, Tone

================================================================================
SIM CARD
================================================================================

- Dual eSIM (two active eSIMs; stores eight or more eSIMs)
- iPhone 17 Pro Max uses advanced eSIM technology
- Not compatible with physical SIM cards

================================================================================
SAFETY FEATURES
================================================================================

Peace of Mind Features:
- Emergency SOS via satellite
- Crash Detection
- Roadside Assistance via satellite
- Messages via satellite
- Find My via satellite

Note: Satellite features are included for free for two years with the
activation of any iPhone 14 or later model.

================================================================================
VIDEO & AUDIO CALLING
================================================================================

VIDEO CALLING:
- FaceTime video calling over cellular or Wi-Fi
- FaceTime HD (1080p) video calling over 5G or Wi-Fi
- Center Stage
- Share experiences like movies, TV, music, and other apps in a FaceTime call
with SharePlay
- Screen sharing
- Portrait mode in FaceTime video
- Spatial Audio
- Voice Isolation and Wide Spectrum microphone modes
- Optical zoom with rear-facing camera

AUDIO CALLING:
- FaceTime audio
- Voice over LTE (VoLTE)
- Wi-Fi calling
- Share experiences like movies, TV, music, and other apps in a FaceTime call
with SharePlay
- Screen sharing
- Spatial Audio
- Voice Isolation and Wide Spectrum microphone modes

================================================================================
AUDIO & VIDEO PLAYBACK
================================================================================

AUDIO PLAYBACK:
Supported Formats: AAC, APAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby
Digital Plus, and Dolby Atmos
- Spatial Audio playback
- User-configurable maximum volume limit

VIDEO PLAYBACK:
Supported Formats: HEVC, H.264, AV1, and ProRes
- HDR with Dolby Vision, HDR10+/HDR10, and HLG
- Up to 4K HDR AirPlay for mirroring, photos, and video out to Apple TV (2nd
generation or later) or AirPlay-enabled smart TV
- Video mirroring and video out support: Up to 4K HDR through native DisplayPort
output over USB-C or USB-C Digital AV Adapter (sold separately)

================================================================================
OPERATING SYSTEM
================================================================================

iOS 26
iOS is the world's most personal and secure mobile operating system, packed
with powerful features and designed to protect your privacy.

================================================================================
SIRI
================================================================================

- Get help with everyday tasks like sending messages, setting reminders, and more
- Activate hands-free with only your voice using "Siri" or "Hey Siri," or use
Type to Siri
- Protected by the strongest privacy of any intelligent assistant
- Powered by Apple Intelligence, Siri is more natural and helpful

================================================================================
BUILT-IN APPS
================================================================================

Apple Store, App Store, Books, Calculator, Calendar, Camera, Clips, Clock,
Compass, Contacts, FaceTime, Files, Find My, Fitness, Freeform, GarageBand,
Health, Home, iMovie, iTunes Store, Journal, Keynote, Magnifier, Mail, Maps,
Measure, Messages, Music, News, Notes, Numbers, Pages, Passwords, Phone, Photos,
Podcasts, Reminders, Safari, Settings, Shortcuts, Stocks, Tips, Translate, TV,
Voice Memos, Wallet, Watch, Weather

ENVIRONMENTAL REQUIREMENTS
================================================================================

- Operating ambient temperature: 32° to 95° F (0° to 35° C)
- Nonoperating temperature: −4° to 113° F (−20° to 45° C)
- Relative humidity: 5% to 95% noncondensing
- Operating altitude: tested up to 10,000 feet (3000 m)

================================================================================
ENVIRONMENTAL COMMITMENT
================================================================================

iPhone 17 Pro Max is designed to reduce environmental impact:

MATERIALS - Made with 30% recycled content, including:
- 50% recycled aluminum in the enclosure
- 100% recycled cobalt and 95% recycled lithium in the battery
- 100% recycled gold plating and tin solder in all Apple-designed printed
circuit boards
- 100% recycled gold wire in all cameras and gold plating in all connectors
- 100% recycled tungsten and copper wire in the Taptic Engine
- 100% recycled copper in the vapor chamber enclosure
- 100% rare earth elements in all magnets

ENERGY:
- 40% of manufacturing electricity is sourced from renewable electricity
- Exceeds U.S. Department of Energy requirements for battery charger systems

PACKAGING:
- 100% fiber-based packaging
- Packaging designed to be more efficient than iPhone 16 Pro boxes, increasing
the number of devices shipped per trip by 25%

WASTE:
- No established final assembly sites generate waste sent to landfill as part of
Apple's Zero Waste Program
