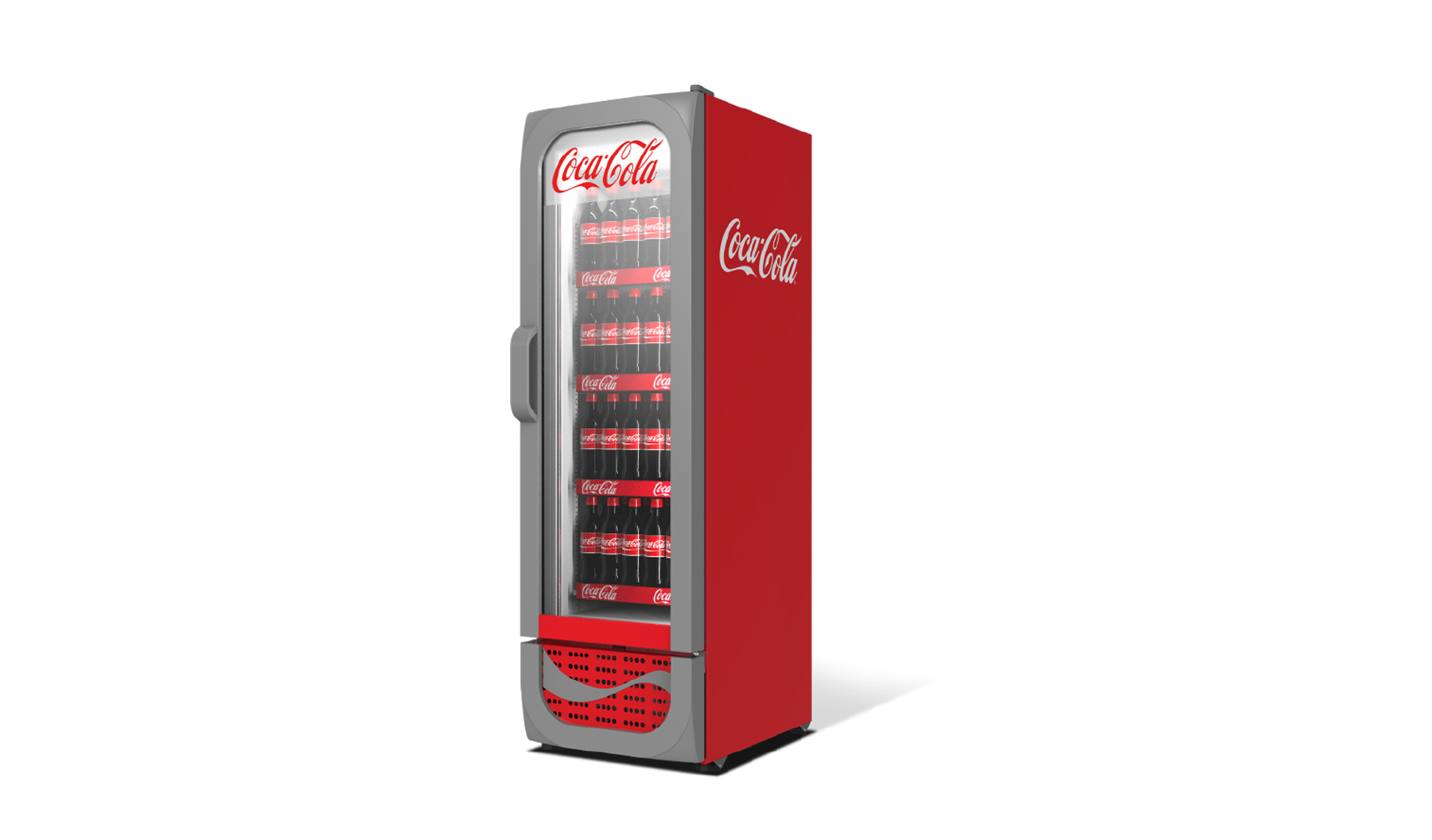

Ψυγείο Βιτρίνα Αναψυκτικών ICOOL-300 258L HC Grey (4)

Ψυγείο Βιτρίνα Αναψυκτικών ICOOL-300 258L HC Grey

Manufacturer: Frigoglass

DIMENSIONS
----------
External Width: 495 mm
Internal Width: 411 mm
External Depth: 650 mm (excluding 40mm handle)
Internal Depth: 516 mm
External Height: 1619 mm
Internal Height: 1216 mm
Footprint Area: 0.32 m²
Display Area: 0.44 m²
Net Weight: 85 kg
Net Volume: 244.5 Lt
Gross Volume: 258 Lt

LOADING DATA
------------
Shelf Dimensions: 389 x 437 mm
Standard Shelves: 4 (1 optional)
Facings per Shelf: 6
Capacity 330ml Cans: 306 max pieces
Capacity 500ml PET: 120 cert. / 144 max pieces

ELECTRICAL DATA
---------------
Electrical Rating: 220-240V~50Hz
Rated Input Current: 1.39 A
Rated Input Power: 230 W
Max Input Power: 275 W
Energy Consumption: 2.45 kWh/24h (at 32°C / 65% RH)
LED Wattage: 6.7 W (1x 5.33W + 1x 1.07W)
LED Type: OPTOCORE LD L=1000mm 24V + LD L=200mm 24V
PSU: ALDER PSU 10W 24V (AP-MB-C-CVR)
IP Rating: IP24

CONTROL SYSTEM
--------------
Thermostat: Electronic SOLLATEK FREOCOM FCR22
Sensors: 1 / air sensor NTC
Defrost Function: Natural
Defrost Start Time: 10 hours
Defrost Duration: 10 mins
Door Switch: REED SWITCH ACEE-SD-8552B
Compressor Cycling On Time: 10 mins
Compressor Cycling Off Time: 15 mins
Cut Out Temperature: 1.5°C
Cut In Temperature: 9.5°C

COMPRESSOR
----------
Model: SECOP TL4CN CSIR R290 220-240V 50Hz
Refrigerant Type: R290
Gas Quantity: 0.075 kg
Starting Relay: 117U7004
Starting Capacitor: 60μF, 117U5014

CONDENSER
---------
Type: WIRE ON TUBE (D5H0502-CO-01)
Fan Blade: AL. SUCTION Ø200*28°
Fan Motor: WEIGUANG YZF 5-13 5/29W 220-240V 50/60Hz 1300rpm

EVAPORATOR
----------
Type: Al TUBE & Al FINS 285*153*75mm (D5H0501-00-01)
Fan Blade: AL. SUCTION Ø200/28°
Fan Motor: WEIGUANG YZF 5-13 5/29W 220-240V 50/60Hz 1300rpm

EXPANSION SYSTEM
----------------
Capillary Tube: Ø0.036" * 4200mm

DOOR GLASS
----------
Glass Panel: 1241.5*438*24 mm (4mm TEMP + 16mm ARGON + 4mm LOW-E)
Magnetic Gasket: 1278*475mm
Torsion Bar: 3.5*3.5*1150mm

STANDARD FEATURES
-----------------
- LED illumination on both sides and top
- Self-closing door
- EC fan motors
- 4 standard shelves
- CC script logo on glass top
- White inner cabinet color
- 4 rollers and 2 adjustable feet
- Low-maintenance WOT condenser
- Silent cooling operation

AMBIENT CONDITIONS
------------------
Operating Condition: 32°C, 65% RH (C Condition)
