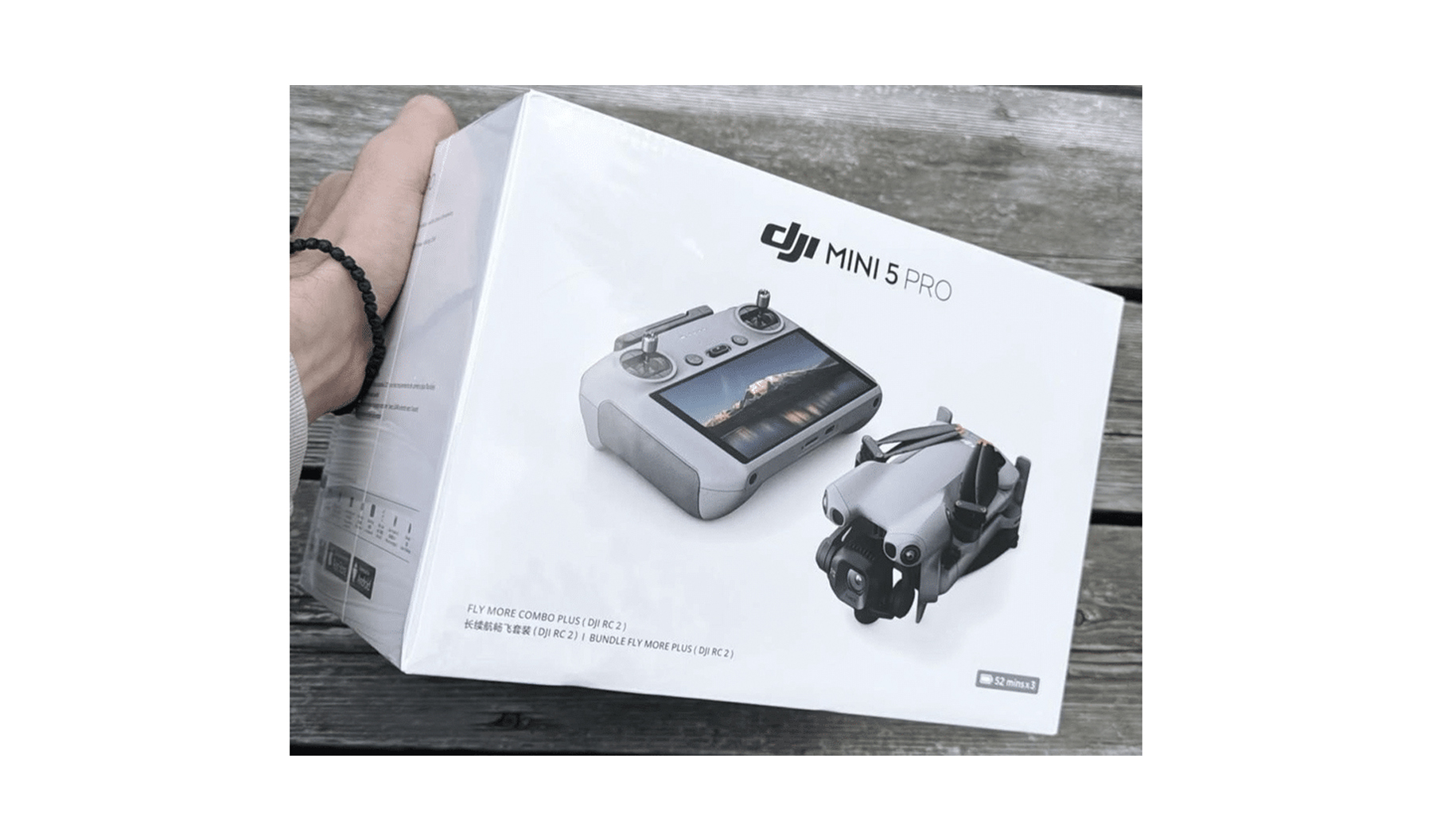

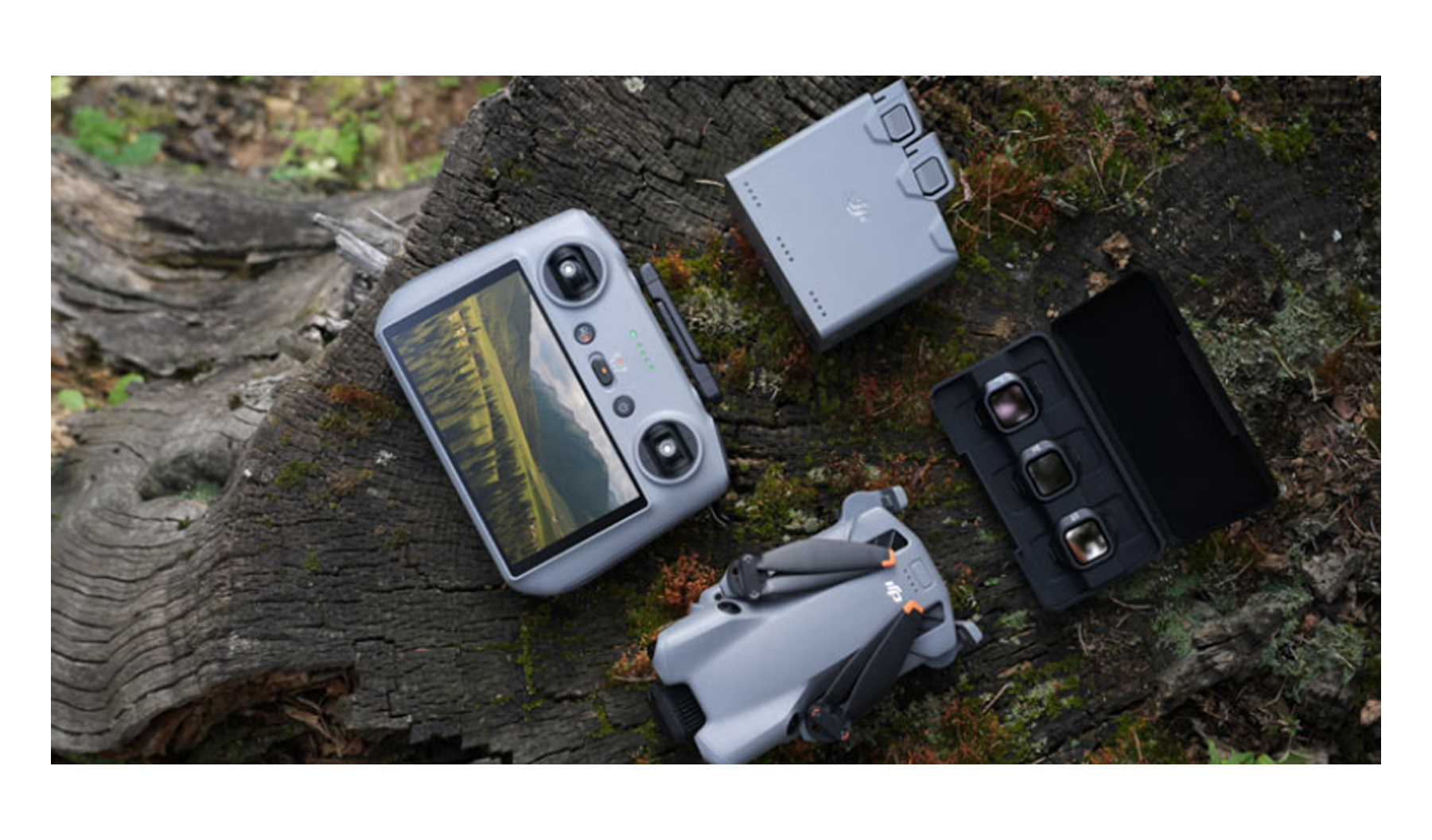

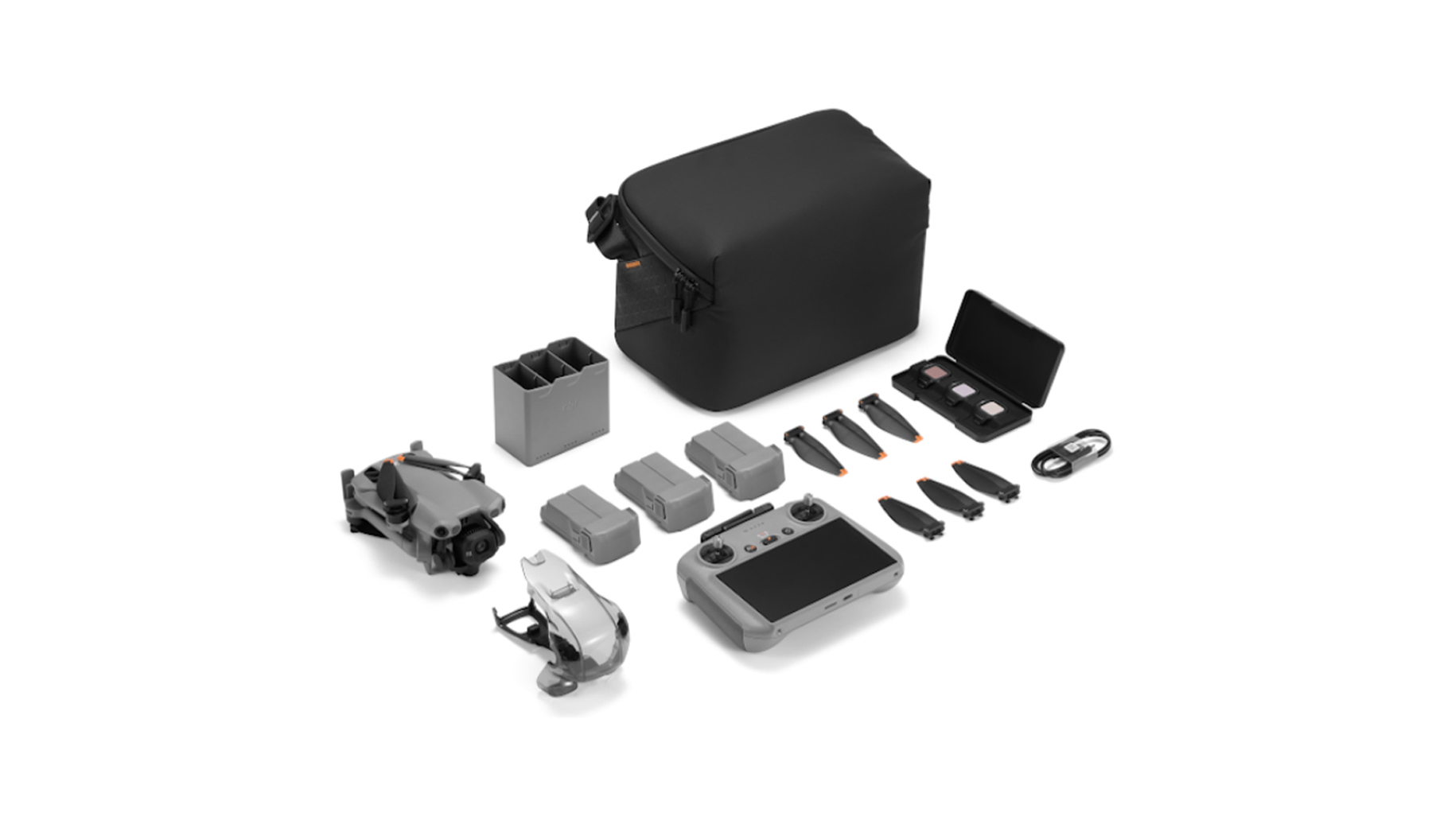

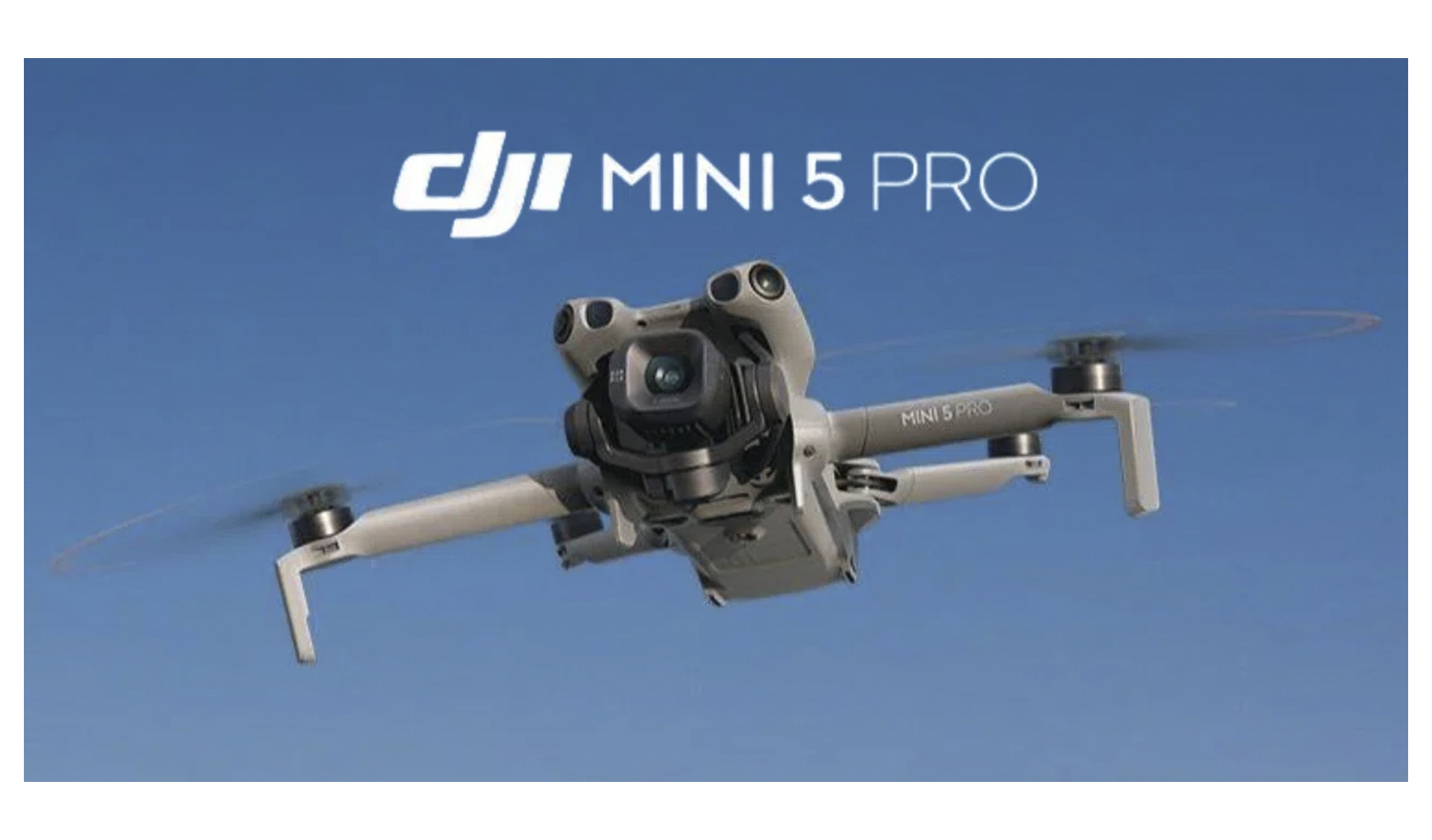

DJI Mini 5 Pro Fly More Combo (DJI RC2)

DJI Mini 5 Pro Fly More Combo (DJI RC2)

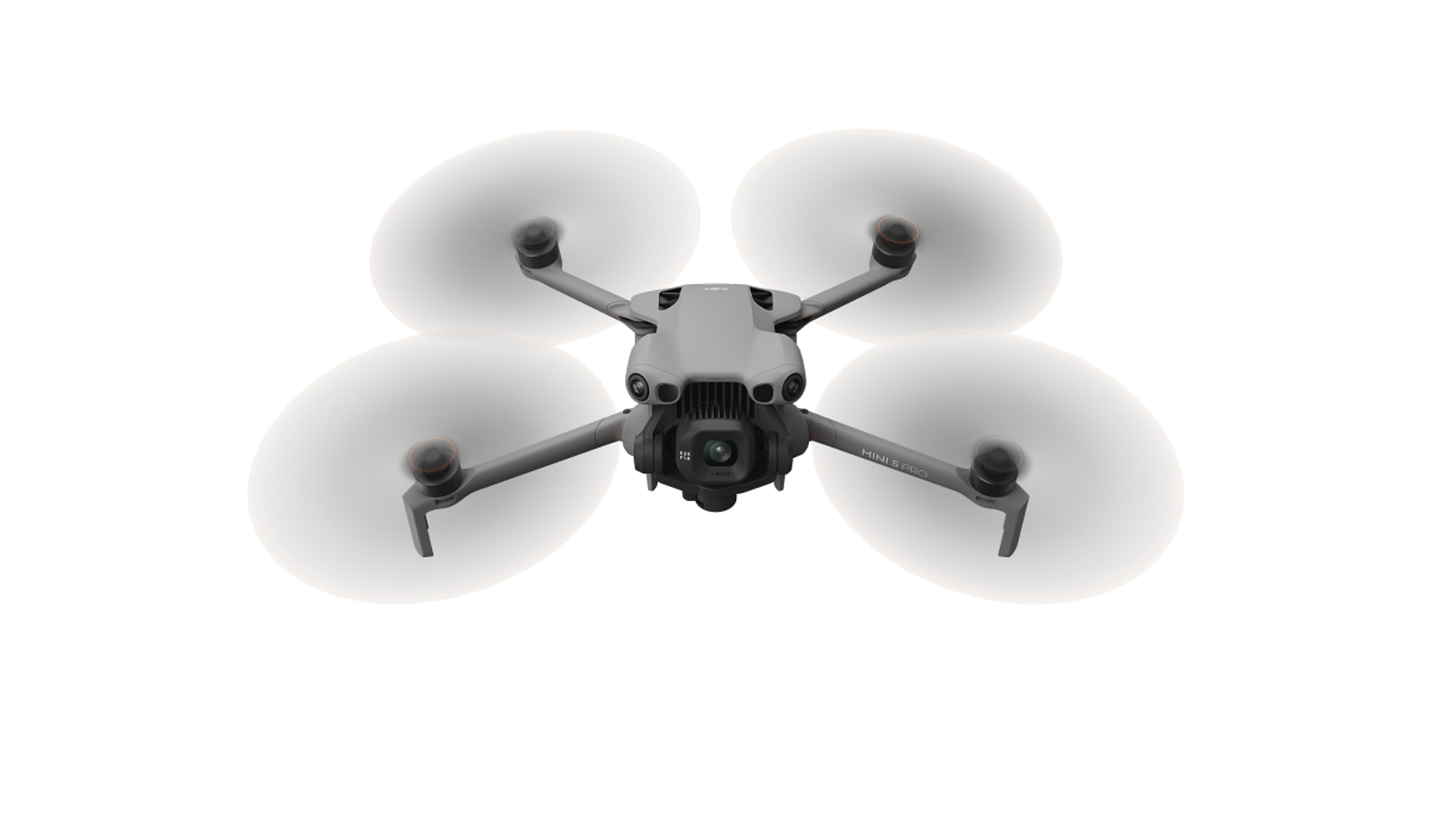

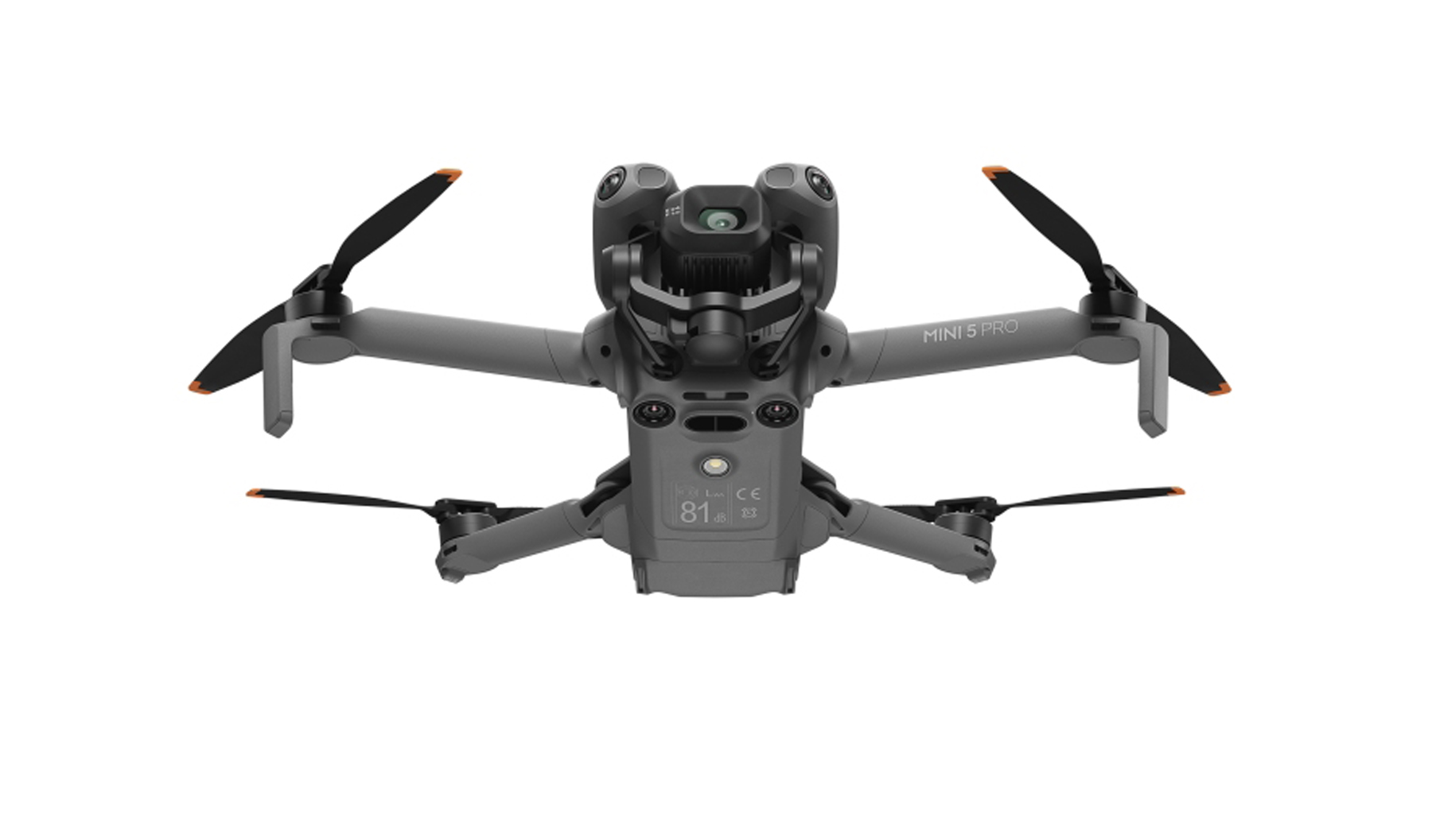

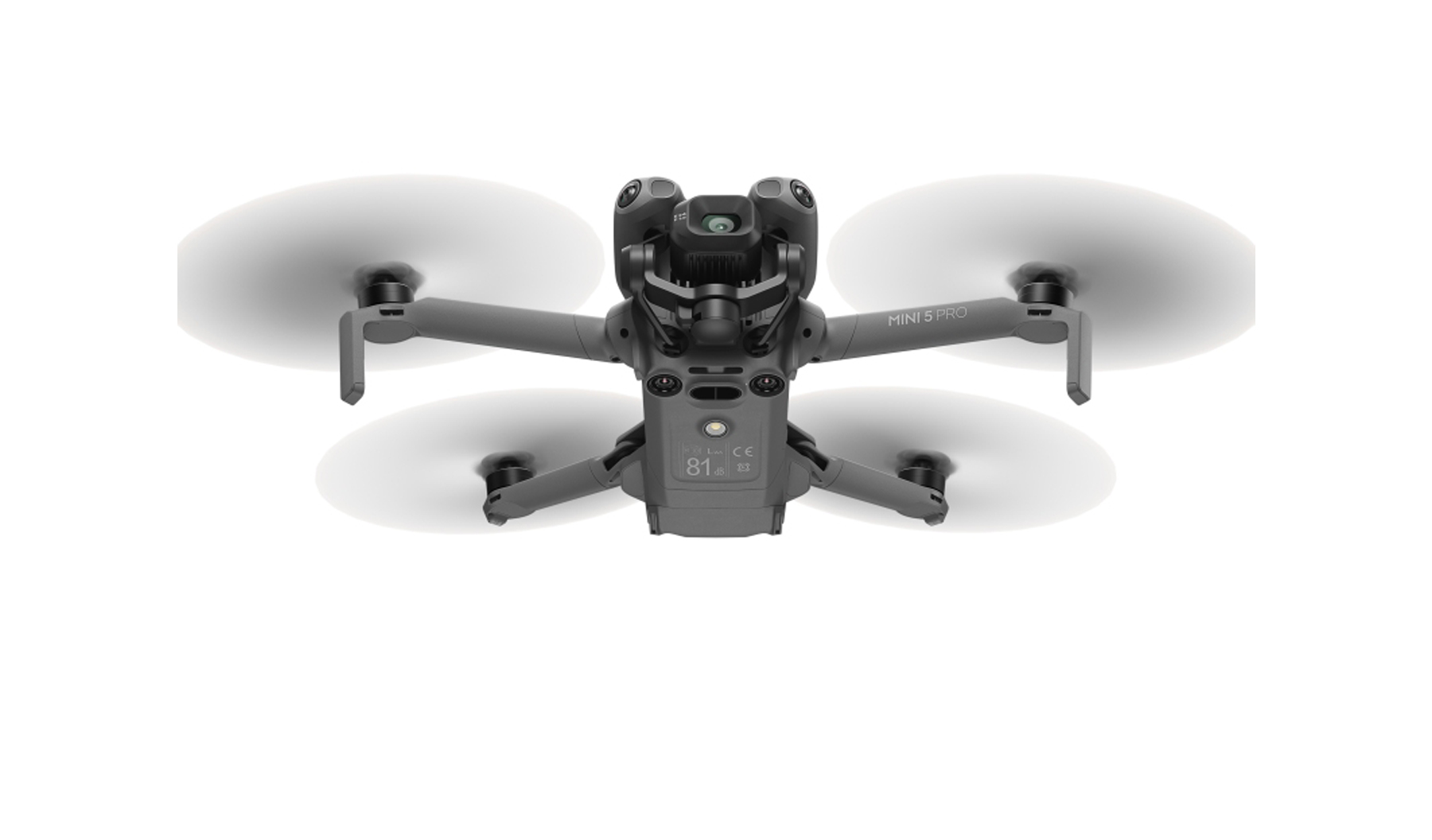

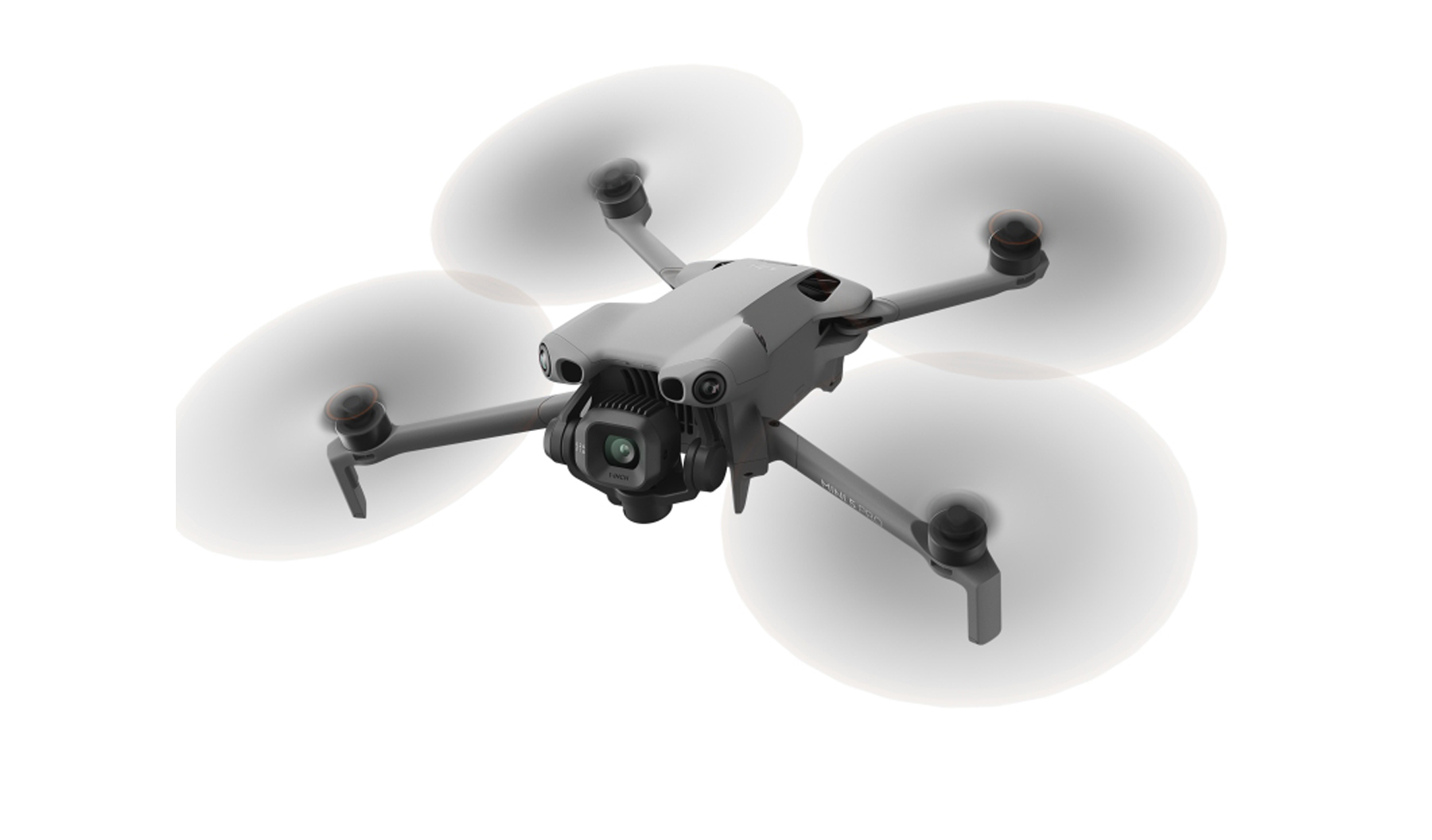

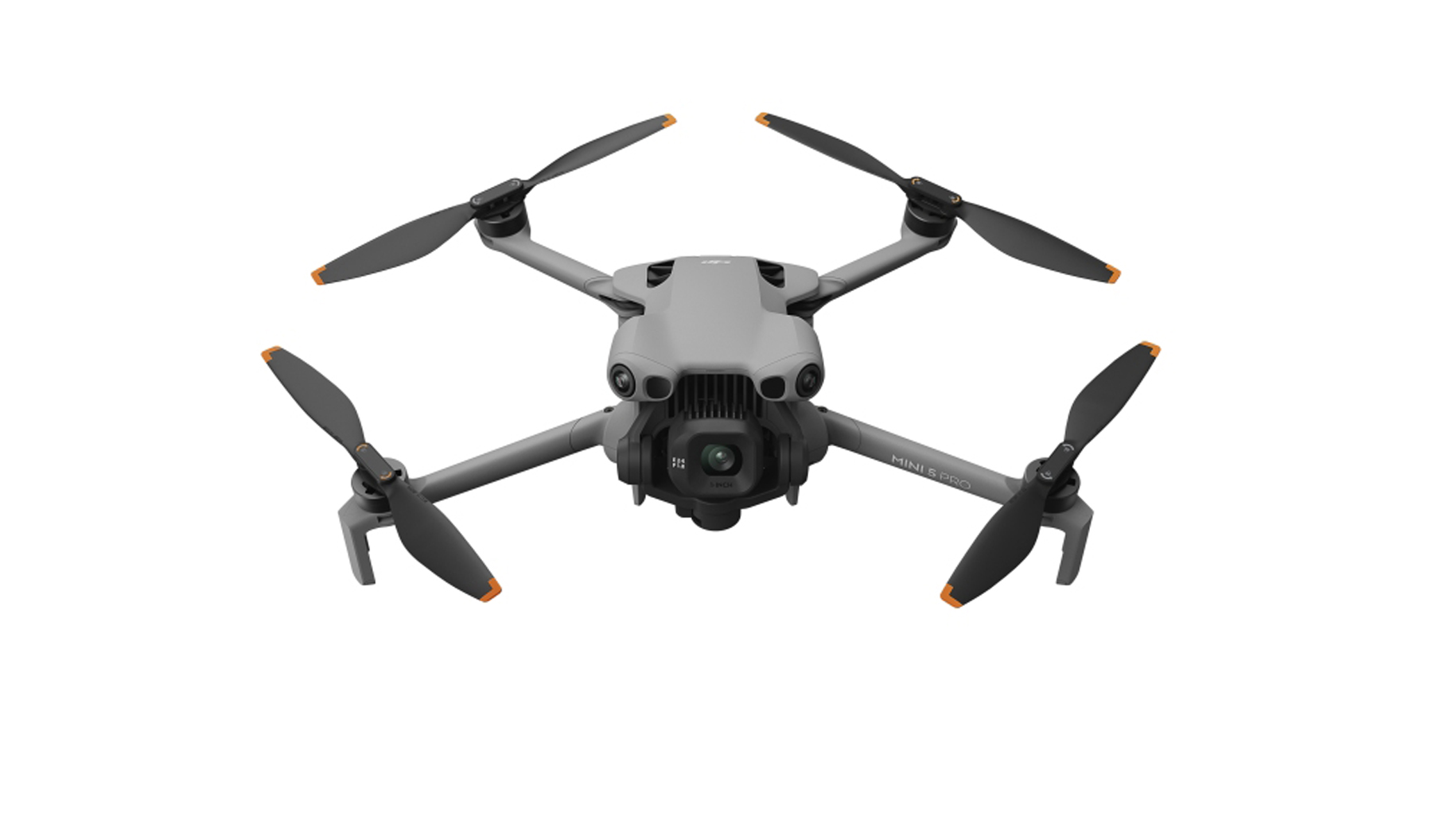

Aircraft
Take-off weight : 249.9 g (±4 g)
Dimensions (Folded, without propellers) : 157×95×68 mm
Dimensions (Unfolded, with propellers) : 304×380×91 mm
Max. ascension speed (S mode) : 10 m/s
Max. ascension speed (N mode) : 5 m/s
Max. ascension speed (C mode) : 5 m/s
Max. descent speed (S mode, Plus battery) : 8 m/s
Max. descent speed (S mode, standard battery) : 6 m/s
Max. descent speed (N/C mode) : 5 m/s
Max. horizontal speed (S mode, Plus battery) : 19 m/s
Max. horizontal speed (S mode, standard battery) : 18 m/s
Max. horizontal speed (tracking) : 15 m/s
Max. takeoff altitude (standard battery) : 6000 m
Max. takeoff altitude (Plus battery) : 4500 m
Max. flight duration (standard battery) : 36 minutes
Max. flight duration (Plus battery) : 52 minutes
Typical flight time (standard battery) : 21 minutes
Typical flight time (Plus battery) : 33 minutes
Max. flight distance (standard battery) : 21 km
Max. flight distance (Plus battery) : 32 km
Max. wind resistance : 12 m/s
Max. angle of inclination : 38°
Operating temperature : -10° to 40 °C
GNSS : GPS + Galileo + BeiDou
Vertical precision (visual positioning) : ±0.1 m
Vertical precision (satellite positioning) : ±0.5 m
Horizontal precision (visual positioning) : ±0.3 m
Horizontal precision (satellite positioning) : ±0.5 m
Internal Storage : 42 GB
Class : C0 (EU)
Camera
Image sensor : 1″ CMOS, 50 MP effective pixels
Field of view : 84°
Equivalent format : 24 mm
Aperture : f/1.8
Focus : 0.5 m to ∞
ISO range (Video, Normal) : 100 to 12,800
ISO range (Video, D-Log M/HLG) : 100 to 3200
ISO range (Video, Slow motion Normal) : 100 to 6400
ISO range (Photo, 12 MP) : 100 to 6400
ISO range (Photo, 50 MP) : 100 to 3200
Shutter speed (12 MP) : 1/8000-2 s (2.5-8 s long exposure)
Shutter speed (50 MP) : 1/8000-2 s
Max. image dimensions : 8192×6144
Photo format : JPEG/DNG (RAW)
Video resolution (4K) : 3840×2160 at 24/25/30/48/50/60/120 fps
Video resolution (FHD) : 1920×1080 at 24/25/30/48/50/60/120/240 fps
Video format : MP4 (H.264, H.265)
Video max. bitrate : 130 Mbps
Supported file system : exFAT
Digital zoom (12 MP photos) : 1 to 3x
Digital zoom (4K) : 1 to 3x
Digital zoom (FHD) : 1 to 4x
Stabilizer
Stabilization : 3-axis mechanical (tilt, rotation, pan)
Mechanical range (Tilt) : -135° to 80°
Mechanical range (Rotation) : -230° to 95°
Mechanical range (Pan) : -25° to 25°
Controllable range (Tilt) : -90° to 55°
Controllable range (Rotation) : -180° to 45°
Max. controllable speed (tilt) : 100°/s
Angular vibration range : ±0.005°
Detection
Detection type : Omnidirectional binocular visual + front LiDAR + bottom infrared
Front measurement range : 0.5 to 18 m
Front detection range : 0.5 to 200 m
Front effective speed : ≤15 m/s
Front FOV : 90° (H), 72° (V)
Rear measurement range : 0.5 to 18 m
Rear effective speed : ≤14 m/s
Rear FOV : 90° (H), 72° (V)
Lateral measurement range : 0.5 to 12 m
Lateral effective speed : ≤14 m/s
Lateral FOV : 90° (H), 72° (V)
Upper measurement range : 0.5 to 18 m
Upper effective speed : ≤6 m/s
Upper FOV : 72° (front/rear), 90° (left/right)
Lower measurement range : 0.3 to 14 m
Lower effective speed : ≤6 m/s
Lower FOV : 106° (front/rear), 90° (left/right)
LiDAR front range (night) : 0.5 to 25 m
LiDAR front FOV : 60° × 60°
Infrared sensor (bottom) range : 0.3 to 8 m
Infrared sensor (bottom) FOV : 60° × 60°
Video Transmission
Transmission system : O4+
Live streaming quality : 1080p/30 fps, 1080p/60 fps
Operating frequency : 2.4 GHz, 5.1 GHz, 5.8 GHz
EIRP 2.4 GHz (FCC) : <33 dBm
EIRP 2.4 GHz (CE/SRRC/MIC) : <20 dBm
EIRP 5.1 GHz (CE) : <23 dBm
EIRP 5.8 GHz (FCC) : <33 dBm
EIRP 5.8 GHz (SRRC) : <30 dBm
EIRP 5.8 GHz (CE) : <14 dBm
Max. transmission distance (FCC) : 20 km
Max. transmission distance (CE/SRRC/MIC) : 10 km
Max. download speed (O4+) : 10 MB/s
Max. download speed (Wi-Fi 6) : 100 MB/s
Minimum latency : ~120 ms
Antenna : 4 antennas, 2T4R
Wi-Fi
Protocol : 802.11 a/b/g/n/ac/ax
Operating frequency : 2.4 GHz, 5.8 GHz
EIRP 2.4 GHz : <20 dBm
EIRP 5.8 GHz (FCC/SRRC) : <26 dBm
EIRP 5.8 GHz (CE) : <14 dBm
Bluetooth
Protocol : Bluetooth 5.4
Operating frequency : 2.4 GHz
Transmission power (EIRP) : <10 dBm
Battery (Standard)
Capacity : 2788 mAh
Weight : ~71.2 g
Nominal voltage : 7 V
Max. charging voltage : 8.6 V
Type : Li-ion (LiNiMnCoO2)
Energy : 19.52 Wh
Charging temperature : 5° to 40 °C
Charging time (via drone, 65W) : ~69 minutes
Charging time (hub, 65W, 1 battery) : ~46 minutes
Charging time (hub, 65W, 3 batteries) : ~115 minutes
Battery (Plus)
Capacity : 4680 mAh
Weight : ~117 g
Nominal voltage : 7.16 V
Max. charging voltage : 8.6 V
Type : Li-ion (LiNiMnCoO2)
Energy : 33.51 Wh
Charging time (via drone, 65W) : ~94 minutes
Charging time (hub, 65W, 1 battery) : ~56 minutes
Charging time (hub, 65W, 3 batteries) : ~193 minutes
Battery Charging Hub
Input : USB-C, 5-15 V, max. 4.3 A
Output : 5-15 V, max. 2 A
Charging type (standard) : Two batteries in parallel
Charging type (Plus) : Three batteries in sequence
Remote Control (DJI RC-N3)
Max. operating time (without charging device) : 3.5 hours
Max. operating time (charging device) : 1.5 hours
Max. supported device dimensions : 180×86×10 mm
Operating temperature : -10° to 40 °C
Charging temperature : 5° to 40 °C
Charging time : 2 hours
Recommended charger : 5 V/2 A
Battery capacity : 9.36 Wh (3.6 V, 2600 mAh)
Weight : ~320 g
Dimensions : 104.2×150×45.2 mm
Supported device inputs : Lightning, USB-C, Micro-USB
